MeisterR Sport-Z Coilovers Mazda MX5 NC 05-15

MeisterR Sport-Z Coilovers for Mazda MX5 NC (2005-2015) – Monotube Coilovers with 36-Stage Damping

MeisterR Sport-Z coilovers replace the standard dampers and springs on the Mazda MX5 NC (2005-2015) with a height adjustable setup designed for fast road driving and occasional track days, with the focus on ride compliance. Ride height and spring preload adjust independently, so you can set the height without changing how the spring is loaded.

The Sport-Z uses monotube dampers and cold wound steel springs, with 36 stages of damping adjustment so you can quickly set the car up for comfort, spirited driving or a track day. Ride height adjusts from standard to approx. 40mm lower.

Specifications

• Damping: 36-stage, compression and rebound combined
• Damper type: Monotube
• Spring rates: 6kg/mm front, 5kg/mm rear
• Front top mount: Aluminium with hardened rubber bush
• Rear top mount: Extended steel with hardened rubber bush
• Damper stroke: 120mm front, 123mm rear
• Out-of-the-box ride height: Front 13.0″ / Rear 13.0″
• Height adjustment: approx. -40mm to OEM
• Warranty: 1 year limited warranty

Key Features

• Monotube damper construction
• 36-stage damping adjustment (compression and rebound combined)
• Cold wound steel springs
• Independent ride height and spring preload adjustment
• Ride height from standard to approx. 40mm lower

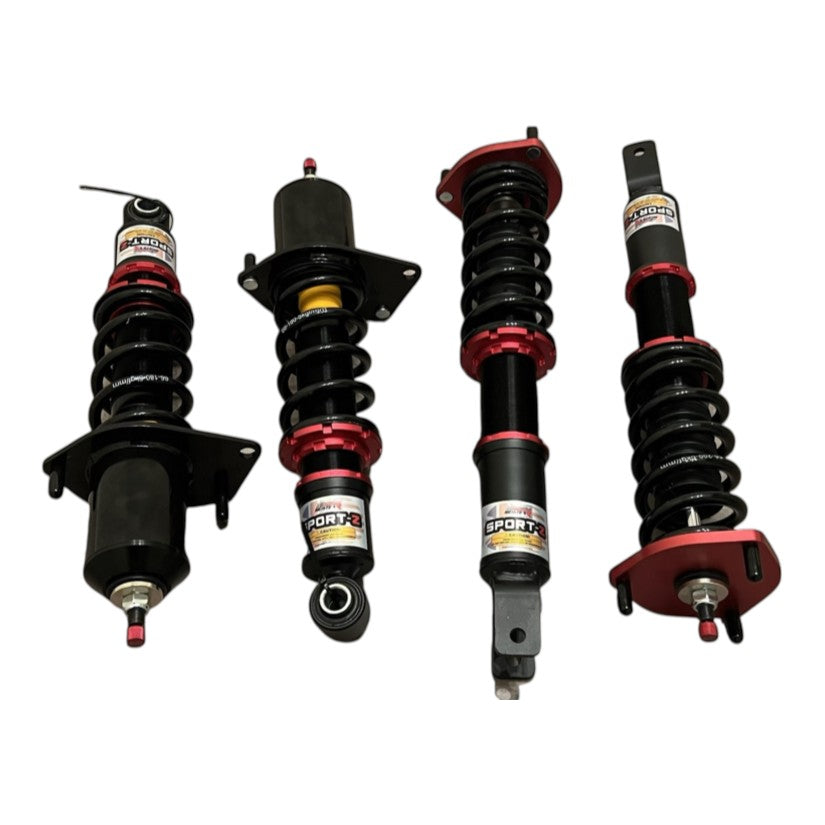

What's in the Kit?

• 2 x front coilovers with springs and top mounts (aluminium with hardened rubber bush)
• 2 x rear coilovers or dampers with springs and top mounts (extended steel with hardened rubber bush)

Fitment

• Mazda MX5 NC (2005-2015)

Not suitable for: other models or chassis codes not listed above. Please check your chassis code and years before ordering.

Installation

The kit bolts in place of the standard suspension. Set the ride height and spring preload, tighten everything to the correct torque, let the suspension settle, then recheck the height and have a four-wheel alignment carried out. We recommend professional fitting.

Please note: MeisterR Damper extension cables are compatible with Sport-Z with optional fixed adjustment knob.

Upgrade Further

Other MeisterR options for this car: MeisterR GT1 Coilovers Mazda MX5 NC 05-15; MeisterR ZetaRace Coilovers Mazda MX5 NC 05-15; MeisterR ZetaSport Coilovers Mazda MX5 NC 05-15; MeisterR Sportive Coilovers Mazda MX5 NC 05-15; MeisterR ClubRace GT1 Coilovers Mazda MX5 NC 05-15.

Can I adjust the ride height?

Yes. Ride height and spring preload adjust independently, so you can set the height without changing spring preload.

How is the damping adjusted?

A single adjuster on each damper gives 36 stages, with compression and rebound adjusted together. Start in the middle and adjust in small steps.

Are these suitable for daily driving?

Yes. They are designed with road use in mind and give a compliant ride with sharper handling than standard.

Do I need a wheel alignment after fitting?

Yes. Changing the ride height alters the suspension geometry, so a four-wheel alignment should be carried out once the car has settled.

Can I use damper extension cables?

MeisterR Damper extension cables are compatible with Sport-Z with optional fixed adjustment knob.

Which MeisterR kit is right for my car?

Choose a road-focused kit such as the ZetaCRD or ZetaSport for mostly road use, and the ClubRace, ZetaRace or GT1 range for track-focused cars. Contact us if you would like help choosing.

What warranty is included?

MeisterR covers this kit with a 1 year limited warranty against defects in materials and workmanship.

Will it fit my car?

This kit is for the Mazda MX5 NC (2005-2015). If you are not sure, contact us with your registration or chassis number and we will confirm before you order.
