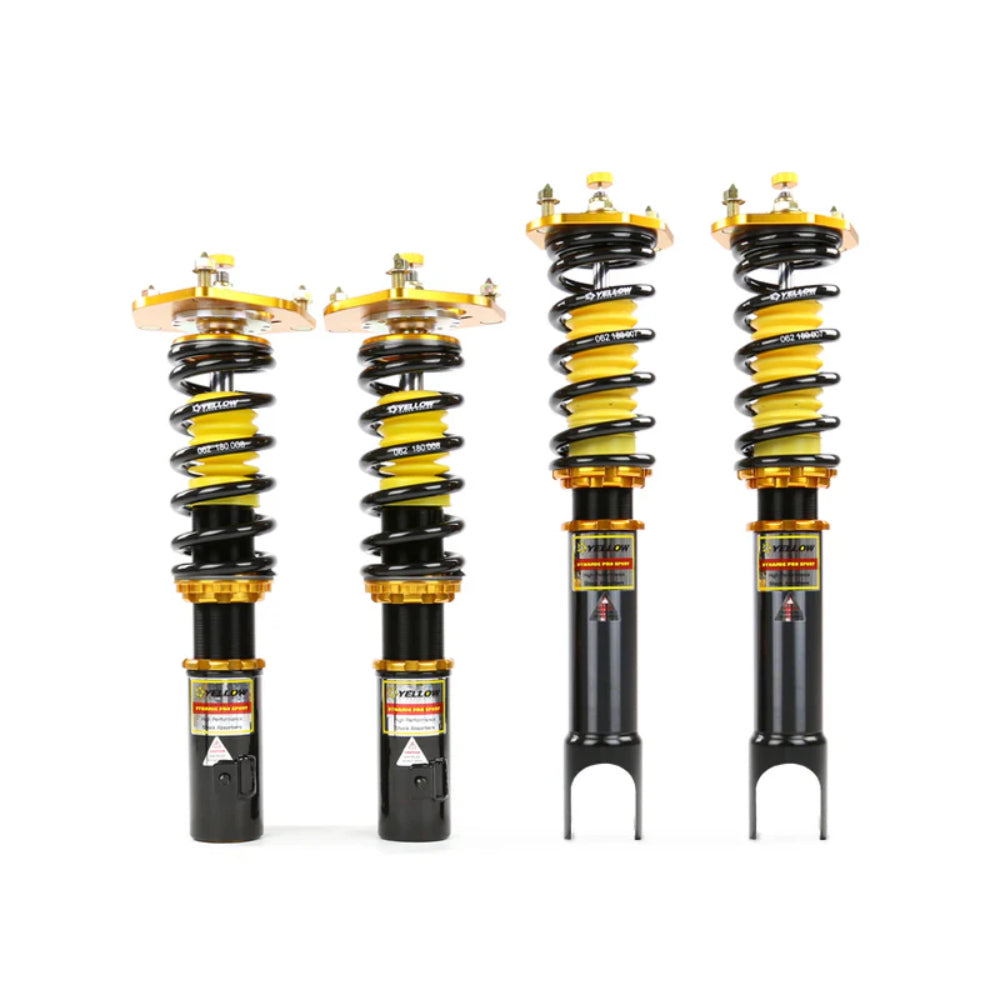

YSR Dynamic Pro Gravel Rally 1-Way Coilovers Honda Jazz GD 03-08

YSR Dynamic Pro Gravel Rally 1-Way Coilovers for Honda Jazz GD (2003-2008) – Raised Ride Height Rally Coilovers with Long Travel

Yellow Speed Racing Dynamic Pro Gravel Rally 1-Way coilovers for the Honda Jazz GD (2003-2008). They are an affordable coilover kit for drivers who prefer off-road gravel rally to circuit racing.

Shock travel is long, close to standard, and the car can be raised by approx. 1.5in (38mm) or more above factory height depending on the application. The lower brackets are reinforced for extra rigidity, so the kit can cope with jumps and gravel impacts.

MacPherson strut cars use 55mm inverted monotube dampers to keep brake heat away from the damper oil. Damping is adjustable through 33 levels. Pillow ball upper mounts are standard where applicable, with hardened rubber mounts (R/U) available for some race regulations, and the front upper mount is approx. 4mm thicker than standard on many cars.

Specifications

• Damping: 1-way, 33-level adjustable
• Ride height: Can be raised approx. 1.5in (38mm) or more above standard
• Travel: Long travel, close to standard
• Damper: 55mm inverted monotube on MacPherson strut cars
• Spring rates: 5kg/mm front, 4kg/mm rear
• Front upper mount: Aluminium pillow ball upper mount with camber plate
• Front strut: Inverted strut
• Rear strut: Standard strut

Key Features

• Raises the car approx. 1.5in (38mm) or more above standard
• Long shock travel, close to standard
• Reinforced lower brackets for strength
• 55mm inverted monotube dampers on MacPherson strut cars
• 33-level adjustable damping
• Hardened rubber upper mounts available for some race regulations
• Front pillow ball mounts with camber adjustment

What's in the Kit?

• 2 x front coilovers with springs and top mounts (aluminium pillow ball upper mount with camber plate)
• 2 x rear dampers and springs

Fitment

• Honda Jazz GD (2003-2008)
• Rear shock and spring are supplied separately. Noise from pillow ball upper mount or spring may occur (trimming vehicle body is required).

Not suitable for: models or versions not listed above. Other Dynamic Pro Gravel Rally versions for this car: YSR Dynamic Pro Gravel Rally 1-Way Coilovers Honda Jazz GD 02-06; YSR Dynamic Pro Gravel Rally 1-Way Coilovers Honda Jazz GD 06-08.

Installation

The coilovers replace the standard dampers and springs. Set the ride height and spring preload, let the suspension settle, then recheck the height and have a four-wheel alignment carried out. We recommend professional fitting.

Please note: Pillow ball upper mounts make a small amount of noise. This is normal and does not affect performance or safety. Yellow Speed Racing also offer hardened rubber upper mounts (R/U) for quieter running. Gravel Rally kits are designed for off-road rally use and are not covered by YSR's warranty. Some trimming of the vehicle body is required.

Upgrade Further

Other Yellow Speed Racing coilovers for this car: YSR Club Performance 2-Way Coilovers Honda Jazz GD 03-08; YSR Dynamic Pro Sport Coilovers Honda Jazz GD 02-06; YSR Premium Competition Coilovers Honda Jazz GD 03-08; YSR Pro Plus Racing 2-Way Coilovers Honda Jazz GD 03-08.

Does this lower my car?

No. Gravel Rally kits raise the car, by approx. 1.5in (38mm) or more above standard depending on the model.

How is the damping adjusted?

A single adjuster on each damper gives 33 levels of adjustment.

Can I use them for tarmac or circuit racing?

They are designed for gravel and loose surfaces. For tarmac or circuit use, see the Advanced Pro Plus Tarmac Rally or Circuit Race ranges.

Can I get rubber top mounts?

Yes. Hardened rubber upper mounts (R/U) are available for some race regulations.

Will the pillow ball mounts be noisy?

They make a small amount of noise, which is normal. Hardened rubber upper mounts (R/U) are available for quieter running.

Do I need a wheel alignment after fitting?

Yes. Changing the ride height alters the suspension geometry, so a four-wheel alignment should be carried out once the car has settled.

What warranty is included?

Yellow Speed Racing do not offer warranty cover on Gravel Rally kits because of the conditions they are used in. YSR do offer a rebuild service, so contact us if your kit needs attention.
