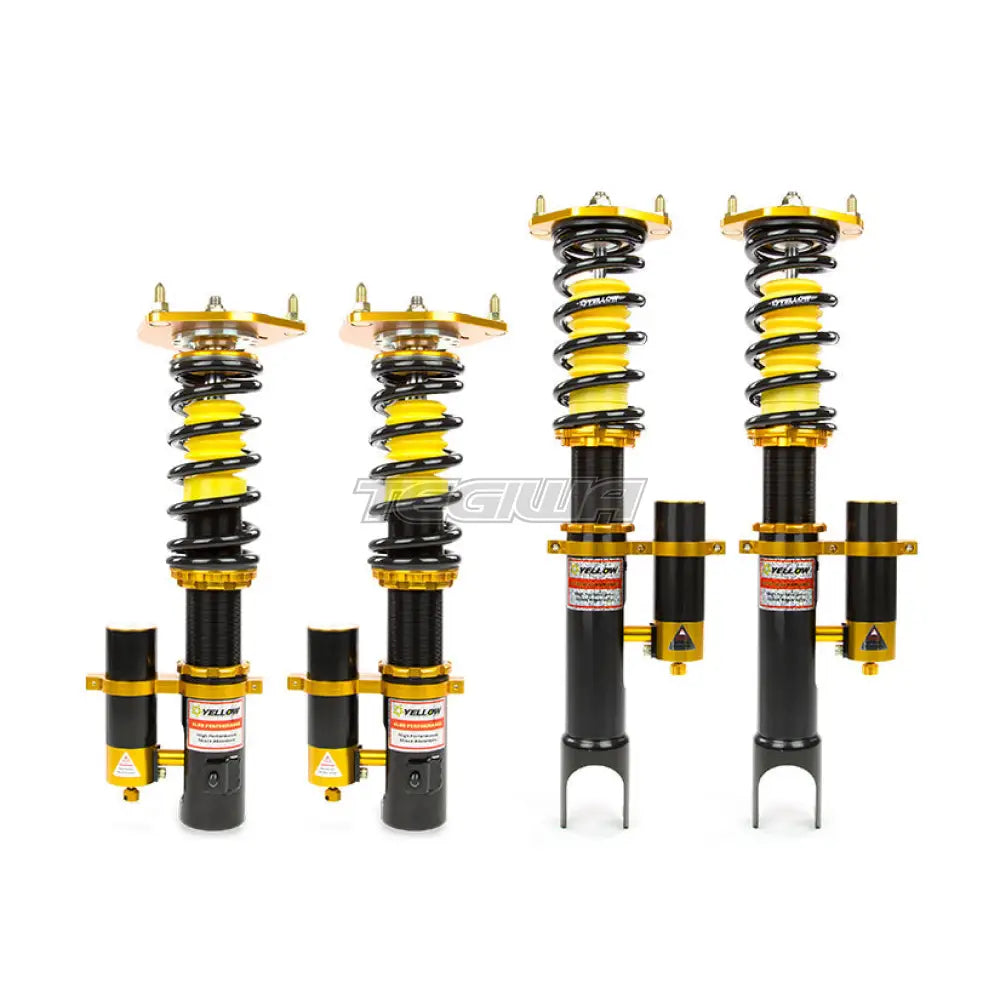

YSR Club Performance 3-Way Coilovers Honda Civic EE EF 89-91 Rear Eye Type

YSR Club Performance 3-Way Coilovers for Honda Civic EE EF (1989-1991) – 3-Way Adjustable Coilovers with External Reservoirs

Yellow Speed Racing Club Performance 3-Way coilovers for the Honda Civic EE EF (1989-1991). They are built for drivers who do track days, club events and weekend racing but still use the car on the road, with adjustable damping that can be set firm for the circuit or softer for daily driving. This listing is for the Rear Eye Type version.

Damping is adjustable three ways: low-speed compression, high-speed compression and rebound are all set independently, and full-length ride height adjustment lets you set the height without changing spring preload or damper travel.

External reservoirs, either hose-mounted or piggyback depending on the car, increase the oil capacity of each damper and help it shed heat. That keeps the damping consistent through long track sessions. The damper bodies are electroplated to resist corrosion.

Specifications

• Damping: 3-way adjustable: low-speed compression, high-speed compression and rebound
• Reservoir: External
• Ride height: Full-length adjustment
• Spring rates: 10kg/mm front, 6kg/mm rear
• Front upper mount: Aluminium upper mount
• Rear upper mount: Aluminium upper mount

Key Features

• 3-way adjustable damping: low-speed compression, high-speed compression and rebound
• External reservoirs for extra oil capacity and better heat dissipation
• Consistent damping through long track sessions
• Full-length ride height adjustment
• Suits track days, club events and daily driving

What's in the Kit?

• 2 x front coilovers with springs and top mounts (aluminium upper mount)
• 2 x rear dampers and springs, plus top mounts (aluminium upper mount)
• Reservoir hose or piggyback reservoir (depending on application)

Fitment

• Honda Civic EE EF (1989-1991) – Rear Eye Type
• Rear EYE type (Advise otherwise if aftermarket steering knuckle is used).

Not suitable for: models or versions not listed above. Other Club Performance versions for this car: YSR Club Performance 2-Way Coilovers Honda Civic EE EF 89-91 Rear Eye Type; YSR Club Performance 2-Way Coilovers Honda Civic EE EF 89-91 Rear Fork Type; YSR Club Performance 3-Way Coilovers Honda Civic EE EF 89-91 Rear Fork Type.

Installation

The coilovers replace the standard dampers and springs. Set the ride height and spring preload, let the suspension settle, then recheck the height and have a four-wheel alignment carried out. We recommend professional fitting.

Upgrade Further

Other Yellow Speed Racing coilovers for this car: YSR Dynamic Pro Sport Coilovers Honda Civic EE EF 89-91 Rear Eye Type; YSR Premium Competition Coilovers Honda Civic EE EF 89-91 Rear Eye Type; YSR Air Suspension Coilovers Honda Civic EE EF 89-91 Fork Type; YSR Pro Plus Racing 2-Way Coilovers Honda Civic EE EF 89-91 Fork Type; YSR Super Low Coilovers Honda Civic EE EF 89-91 Eye Type.

How is the damping adjusted?

Low-speed compression, high-speed compression and rebound each have their own adjuster.

What does the external reservoir do?

It holds extra oil, which helps the damper stay cool and keeps the damping consistent during long track sessions.

Can I use these on the road?

Yes. Set the damping softer for daily driving and firmer for track days.

Can I adjust the ride height without changing preload?

Yes. Full-length adjustment lets you set the ride height without changing spring preload.

Do I need a wheel alignment after fitting?

Yes. Changing the ride height alters the suspension geometry, so a four-wheel alignment should be carried out once the car has settled.

What warranty is included?

Yellow Speed Racing cover Club Performance coilovers with a 6 month limited warranty against defects in materials and workmanship, provided they are used as intended.
