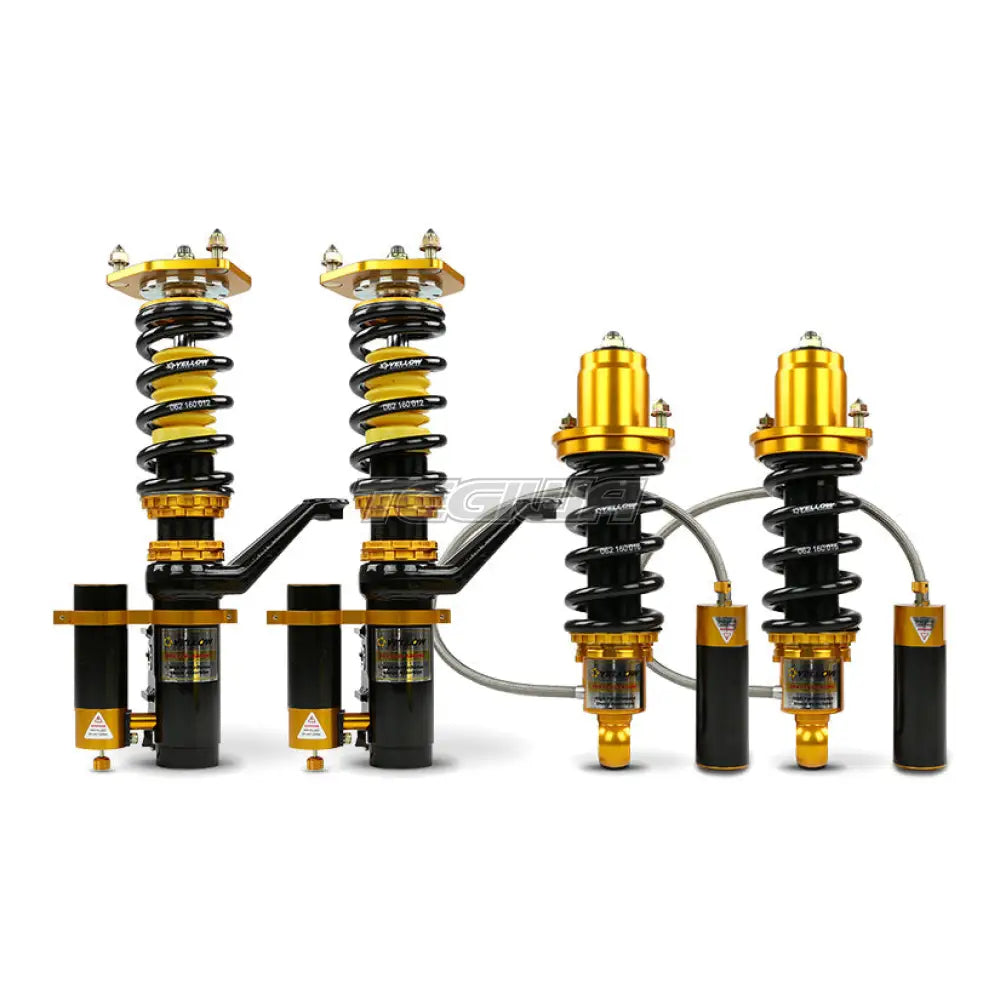

YSR Advanced Pro Plus Circuit Race 2-Way Coilovers Honda Civic FB 12-15 Rear Shock & Spring Separate

YSR Advanced Pro Plus Circuit Race 2-Way Coilovers for Honda Civic FB (2012-2015) – 2-Way Adjustable Inverted Track Coilovers with Remote Reservoirs

Yellow Speed Racing Advanced Pro Plus Circuit Race 2-Way coilovers for the Honda Civic FB (2012-2015). They are built for circuit racing, time attack and track use. This listing is for the Rear Shock & Spring Separate version.

The Advanced Pro Plus uses inverted monotube front struts for MacPherson strut cars, with compression and rebound adjusted separately and full-length ride height adjustment. Remote external reservoirs add oil capacity for consistent damping through long, hard sessions, and are connected by braided hoses through the upper mounts so they can be mounted where they suit the car.

The Circuit Race spec uses stiffer valving for track use. YSR do not recommend it for regular road driving, as ride comfort, noise and vibration are all compromised away from the circuit.

Specifications

• Version: Circuit Race
• Damping: 2-way adjustable: separate compression and rebound
• Reservoir: Remote external, braided hose through the upper mounts
• Ride height: Full-length adjustment
• Spring rates: 14kg/mm front, 12kg/mm rear
• Front upper mount: Aluminium pillow ball upper mount with camber plate
• Front strut: Inverted Strut
• Rear strut: Standard Strut

Key Features

• 2-way adjustable damping
• Inverted monotube front struts for strength and rigidity
• Remote external reservoirs for consistent damping
• Braided hoses routed through the upper mounts
• Full-length ride height adjustment
• Stiffer Circuit Race valving for track use
• 3D camber and castor upper mounts available as an option on some cars
• Front pillow ball mounts with camber adjustment

What's in the Kit?

• 2 x front coilovers with springs and top mounts (aluminium pillow ball upper mount with camber plate)
• 2 x rear dampers and springs
• Remote reservoirs with braided hoses

Fitment

• Honda Civic FB (2012-2015) – Rear Shock & Spring Separate
• Rear shock and spring are supplied separately. Not for Si models.

Not suitable for: models or versions not listed above. Other Advanced Pro Plus versions for this car: YSR Advanced Pro Plus Circuit Race 3-Way Coilovers Honda Civic FB 12-15 Rear Shock & Spring Separate; YSR Advanced Pro Plus Gravel Rally 2-Way Coilovers Honda Civic FB 12-15 Rear Shock & Spring Separate; YSR Advanced Pro Plus Gravel Rally 3-Way Coilovers Honda Civic FB 12-15 Rear Shock & Spring Separate; YSR Advanced Pro Plus Tarmac Rally 2-Way Coilovers Honda Civic FB 12-15 Rear Shock & Spring Separate.

Installation

The coilovers replace the standard dampers and springs. Set the ride height and spring preload, let the suspension settle, then recheck the height and have a four-wheel alignment carried out. We recommend professional fitting.

Please note: Pillow ball upper mounts make a small amount of noise. This is normal and does not affect performance or safety. Yellow Speed Racing also offer hardened rubber upper mounts (R/U) for quieter running. The Circuit Race spec is not recommended for regular road use.

Upgrade Further

Other Yellow Speed Racing coilovers for this car: YSR Club Performance 2-Way Coilovers Honda Civic FB 12-15; YSR Dynamic Pro Sport Coilovers Honda Civic FB 12-15; YSR Premium Competition Coilovers Honda Civic FB 12-15 Rear Shock & Spring In One Unit; YSR Pro Plus Racing 2-Way Coilovers Honda Civic FB 12-15 Rear Shock & Spring In One Unit; YSR Air Suspension Coilovers Honda Civic FB 12-15.

Can I use these on the road?

YSR do not recommend the Circuit Race spec for regular road use. The stiffer valving reduces comfort and increases noise and vibration on the road.

What is the difference between Circuit Race, Tarmac Rally and Gravel Rally?

Circuit Race is lowered with stiffer valving for track use. Tarmac Rally is set up for sealed-surface rally stages. Gravel Rally raises the car and uses softer springs, more travel and rally valving for loose surfaces.

How is the damping adjusted?

Compression and rebound each have their own adjuster, so they can be set independently.

Where does the reservoir go?

The remote reservoir connects through the upper mount with a braided hose, so it can be mounted in a suitable place such as the engine bay or boot. The installer is responsible for choosing a safe mounting position.

Will the pillow ball mounts be noisy?

They make a small amount of noise, which is normal. Hardened rubber upper mounts (R/U) are available for quieter running.

Do I need a wheel alignment after fitting?

Yes. Changing the ride height alters the suspension geometry, so a four-wheel alignment should be carried out once the car has settled.

What warranty is included?

Yellow Speed Racing cover Advanced Pro Plus coilovers with a 3 month limited warranty against defects in materials and workmanship.
