ST XA Coilovers Peugeot 206/206 CC/206 SW 98-12

ST XA Coilovers for Peugeot 206/206 CC/206 SW (1998-2012) – 30-65 mm Lower, Height Adjustable, 16-Click Rebound Damping

This ST XA kit replaces the standard springs and dampers on the Peugeot 206/206 CC/206 SW (1998-2012) with a height-adjustable coilover set. It lowers the car by approx. 35-65 mm at the front and 30-50 mm at the rear, which sharpens the steering, cuts body roll and closes up the wheel arch gap. The ride height is set on threaded struts, so you can go for a subtle drop or use the full approved range, and change it again later.

The ST XA adds adjustable rebound damping to the height-adjustable ST platform. ST set the dampers up for this car at the factory, and the 16-click rebound adjuster then lets you make the ride softer for comfort or firmer for tighter body control. Shaped (progressive) springs keep the car comfortable over small bumps while adding support as the suspension compresses. ST is part of the KW automotive group, and the kit is developed and made in Germany using KW engineering.

This kit is for the Peugeot 206/206 CC/206 SW (Hatchback, Estate, Convertible) with the 1.1, 1.1 i, 1.4, 1.4 16V, 1.4 HDI, 1.4 HDI eco 70, 1.4 i, 1.6 and more, up to a 890 kg front axle load. Check the Fitment section below before ordering.

Specifications

• Front lowering: approx. 35-65 mm
• Rear lowering: approx. 30-50 mm
• Max front axle load: up to 890 kg
• Max rear axle load: up to 780 kg
• Height adjustment: Stepless, on threaded strut housings
• Minimum ride height (wheel hub centre to arch edge): front 310 mm, rear 305 mm
• Damping: Adjustable rebound, 16 clicks (rear dampers fixed on some versions)
• Springs: Shaped progressive springs
• Strut housings: Galvanised steel
• Approval: Parts certificate (German §19.3)

Lowering figures are ST's, measured against the standard car. The actual drop varies with engine, equipment and tolerances on each car, and the springs settle slightly after the first few hundred miles.

Key Features

• Stepless ride height adjustment on a coarse, dirt-resistant trapezoidal thread
• 16-click adjustable rebound damping, delivered with a base setting for this vehicle
• Shaped progressive springs for a comfortable ride with firmer support in corners
• Galvanised, multi-sealed steel strut housings for long-term corrosion protection
• Composite spring perches with stainless steel inserts that stay easy to adjust for years
• Dust covers and bump stops protect the damper seals and act as an extra spring under heavy load
• Developed and built in Germany, based on KW engineering
• Supplied with a parts certificate and fitting instructions

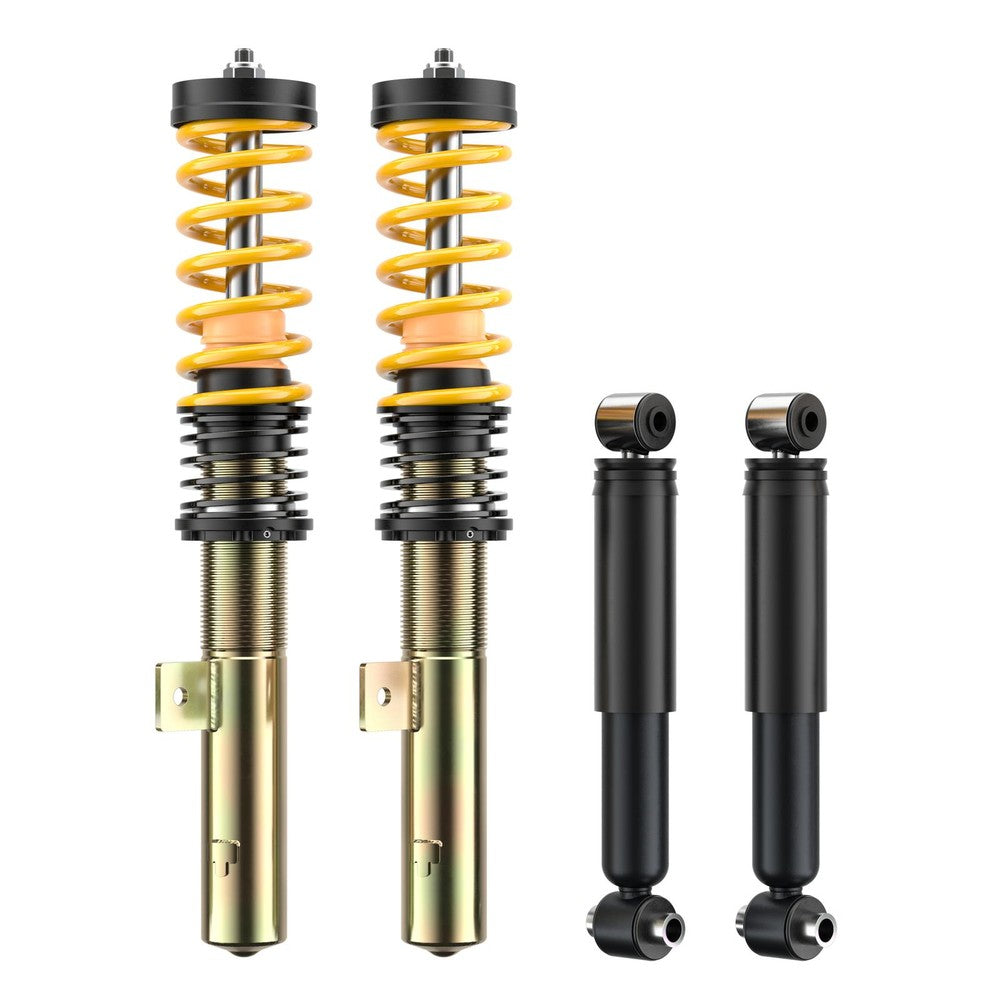

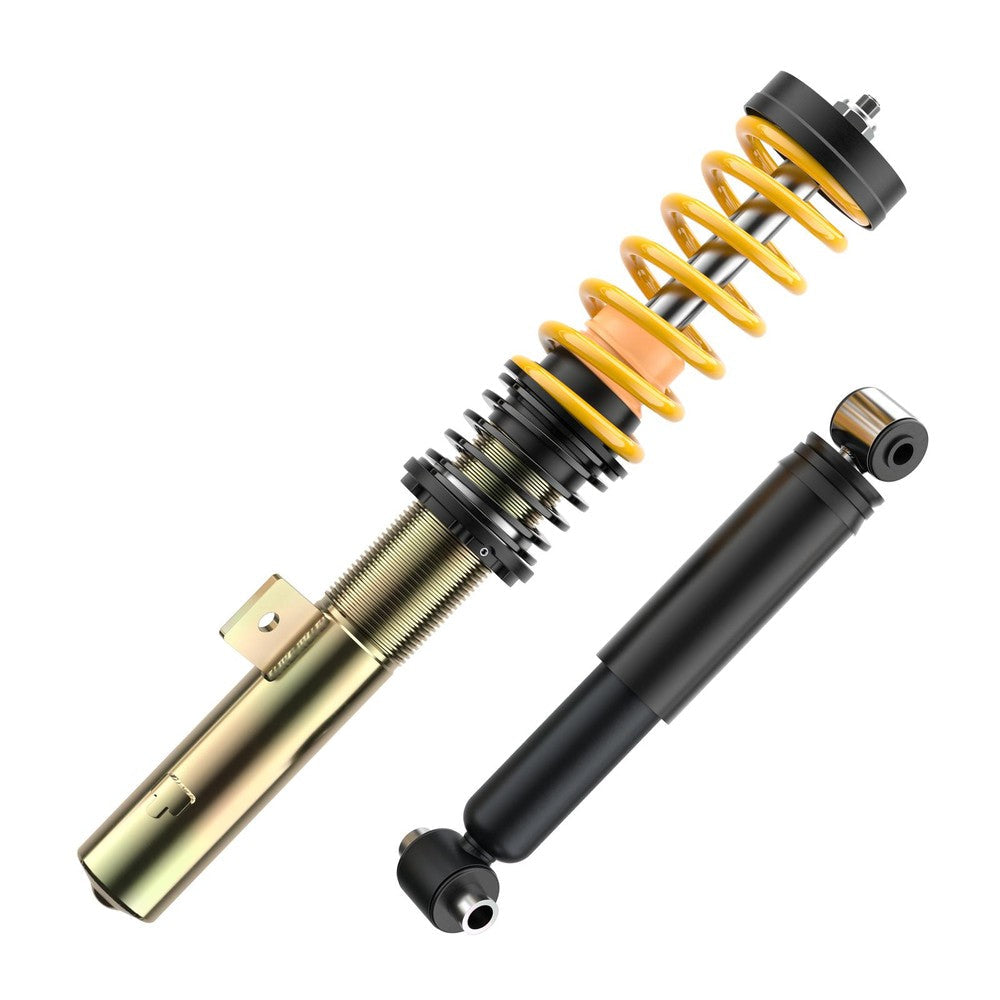

What's in the Kit?

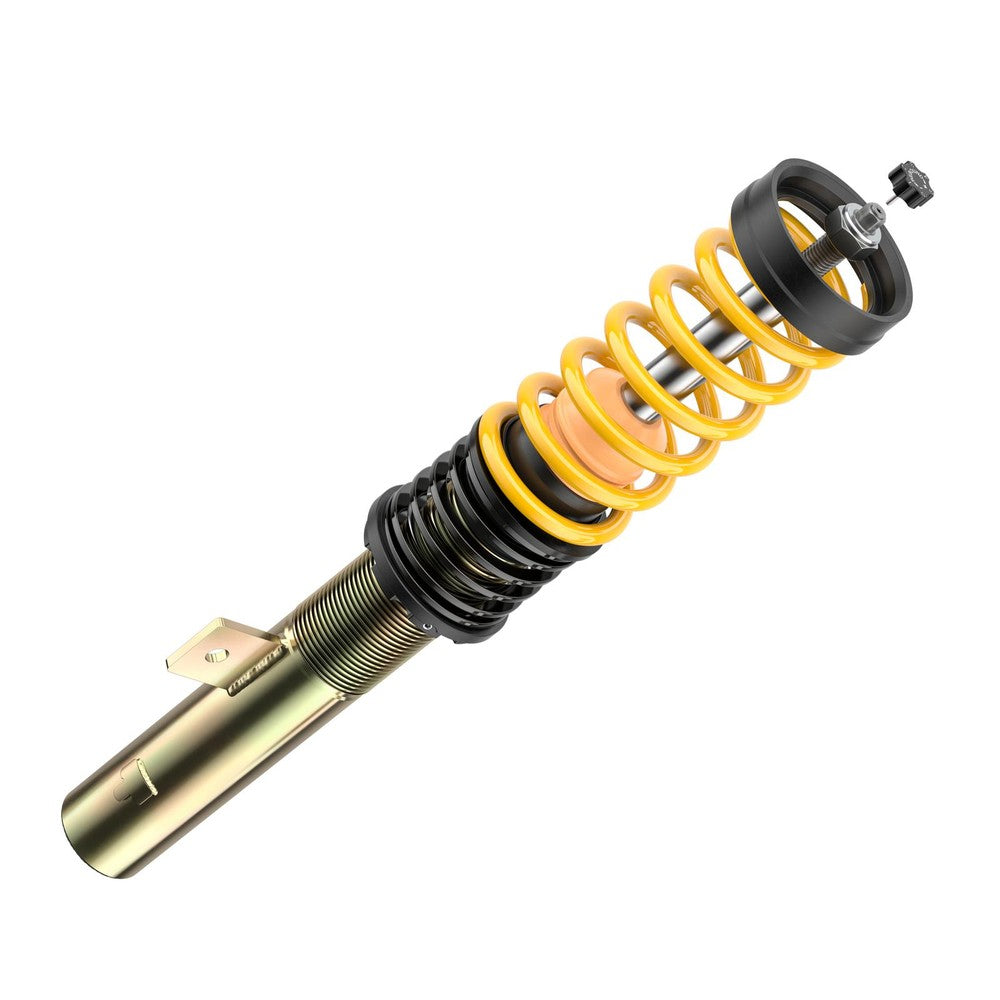

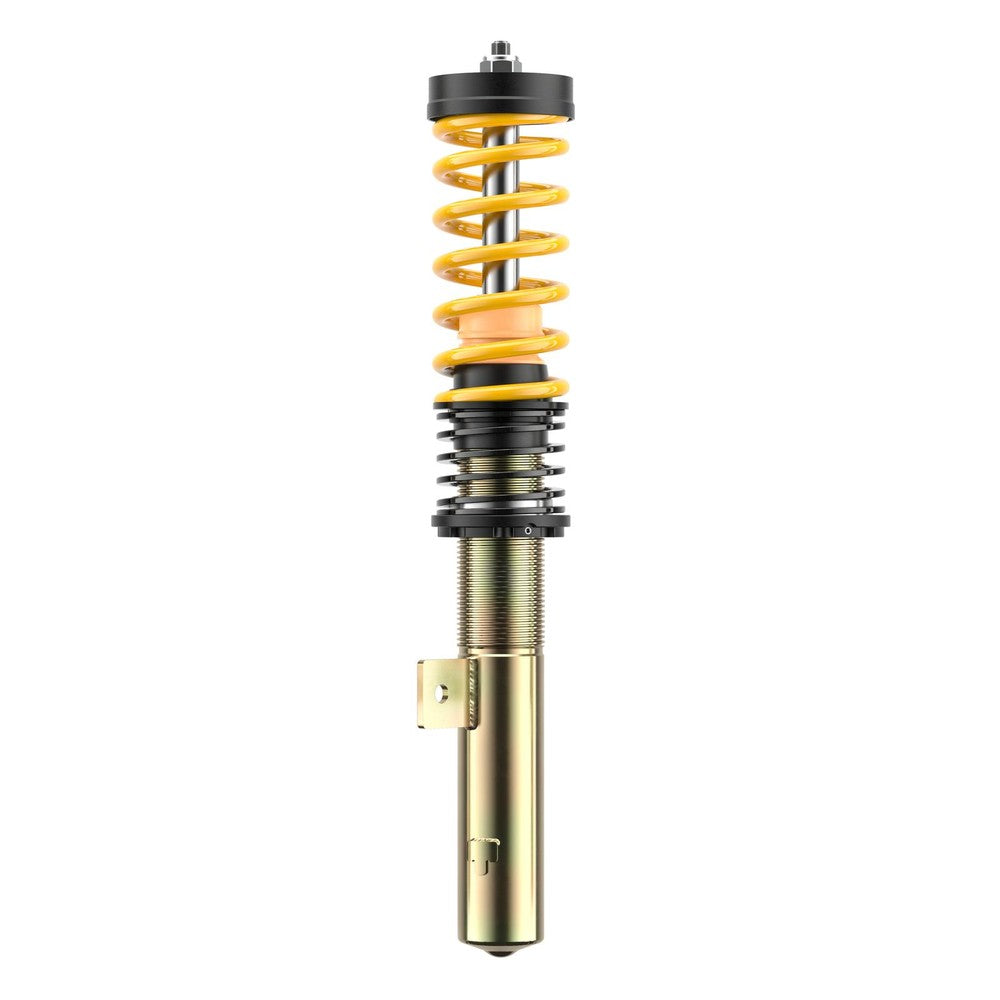

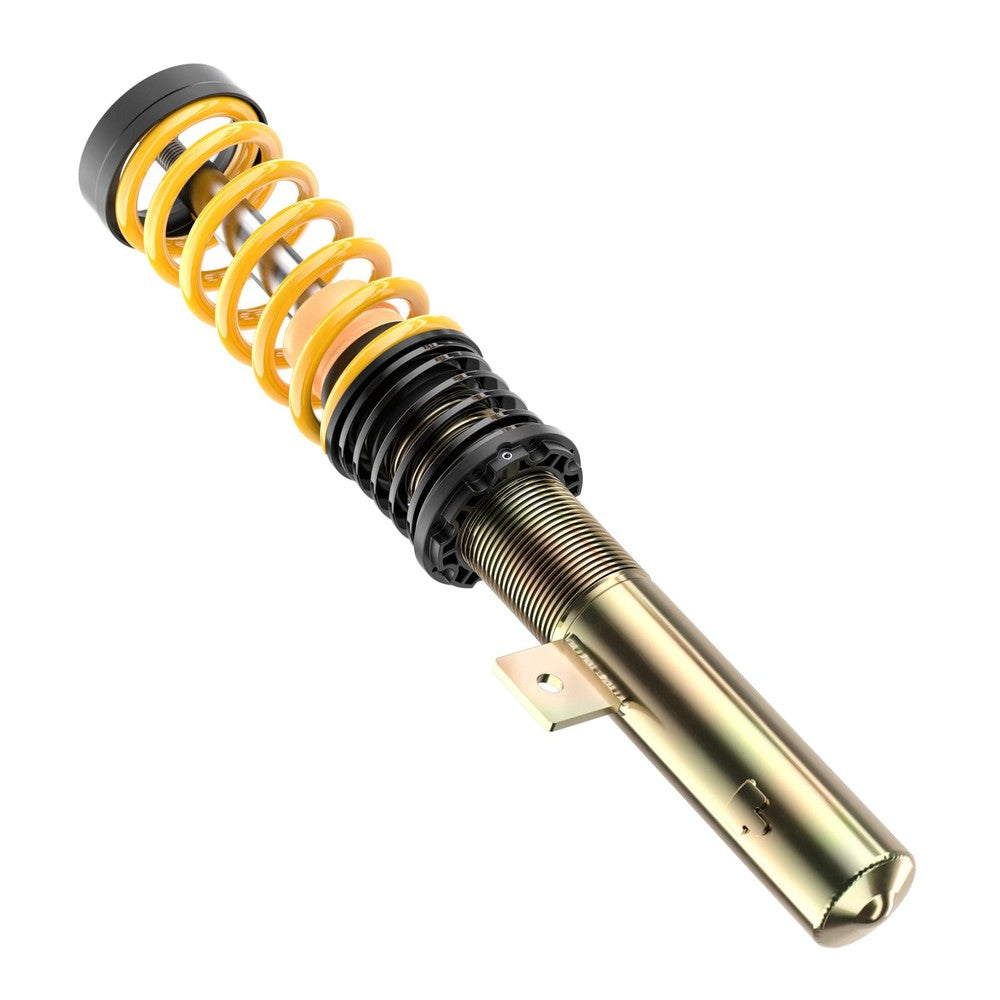

• 2 x height-adjustable front coilover struts with springs

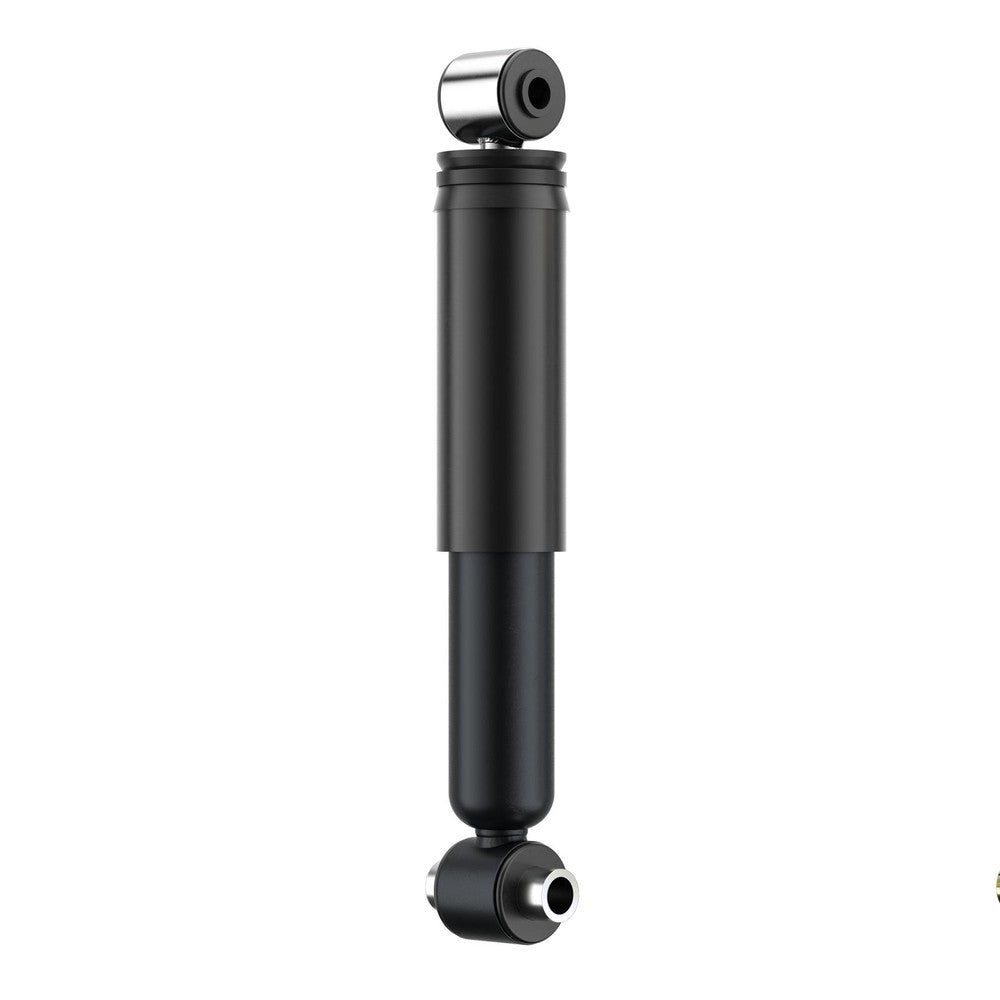

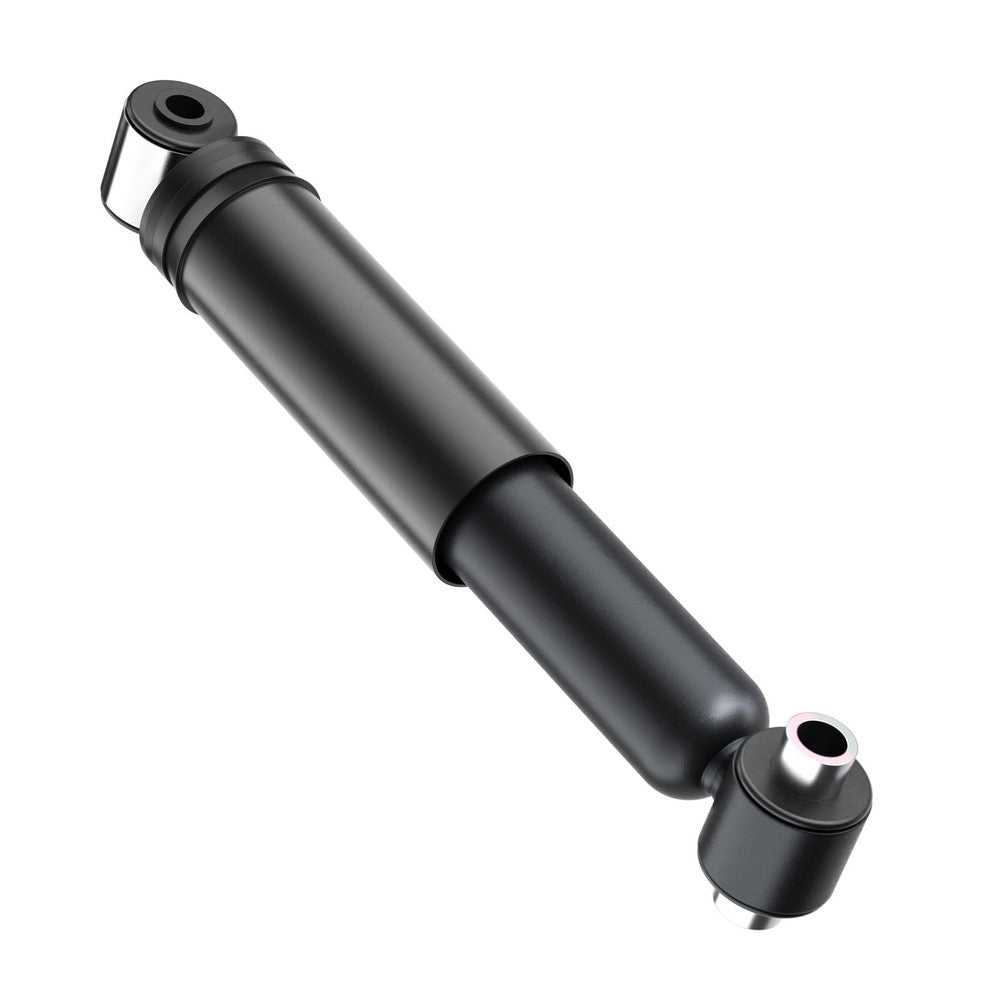

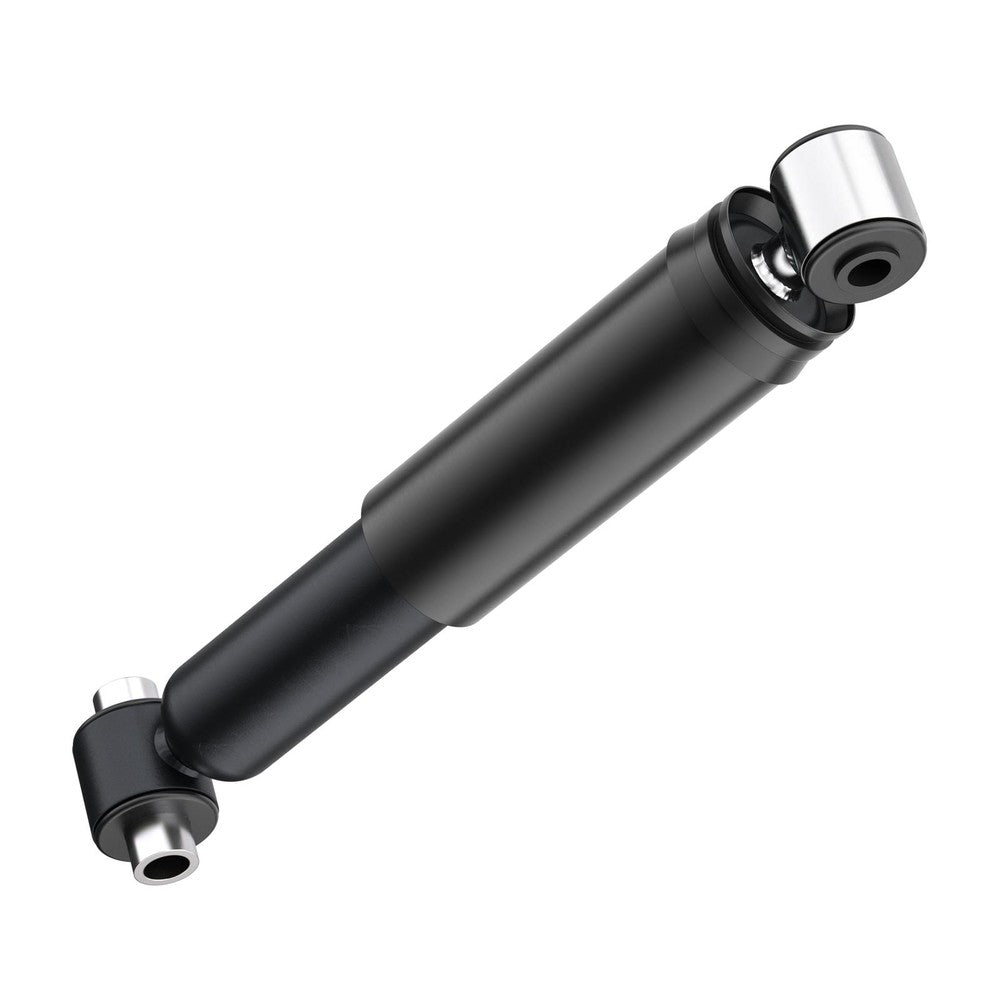

• 2 x rear dampers (the original rear springs or rear height adjustment are reused)
• Composite spring perches with stainless steel inserts
• Dust covers and bump stops
• Parts certificate and fitting instructions

Ride height is adjustable at the front only. The rear uses adjustable sports dampers, and rear height is set using the torsion bar.

On the ST XA, the rear dampers are not adjustable; they are fixed-rate sports dampers.

Please note: the photos are ST's own images of this kit. Small details such as brackets can differ from the photos.

Fitment

• Peugeot 206 2, 2L, 2M (Jan 2009 to Aug 2013)
• Peugeot 206 CC 2D, 2 (Sep 2000 to Dec 2008)
• Peugeot 206 Hatchback 2A/C, 2 (Aug 1998 to Dec 2012)
• Peugeot 206 SW 2E/K, 2 (Jul 2002 on)
• Peugeot 206 Saloon 2 (Mar 2007 on)
• Engines: 1.1, 1.1 i, 1.4, 1.4 16V, 1.4 HDI, 1.4 HDI eco 70, 1.4 i, 1.6, 1.6 16V, 1.6 8V, 1.6 HDI 110, 1.6 i, 1.9 D, 2.0 16V, 2.0 HDI 90, 2.0 HDI, 2.0 RC, 2.0 S16

Not suitable for: any vehicle not listed above. Contact us with your registration if you are unsure.

Installation

Fitting means removing the original struts, springs and dampers and fitting the ST units in their place. We recommend a qualified workshop experienced with coilovers. A spring compressor is needed to strip down the original front struts. The original top mounts, bearings and fixings are reused, so check them for wear and replace any that are worn. Set the ride height within the approved range, tighten the suspension bolts with the car's weight on its wheels, and torque everything to the manufacturer's figures. A four-wheel alignment is required once the car is at its final ride height. Re-check the height and alignment after the first few hundred miles, once the springs have settled.

Download ST's documents for this kit: Fitting instructions (PDF), Parts certificate (PDF), Damper adjustment guide (PDF).

The dampers arrive on ST's base setting for this car. Make small changes to the rebound adjuster and test before going further.

Before you start:

• With the factory wheels and tyres, wheel spacers may be needed to give enough clearance to the coilovers.
• On the original wheel sizes, wheel spacers may be needed to keep enough clearance.
• Where no bump stop is supplied, the original bump stops are reused, so replace any that are worn or damaged.
• Disconnect any ride height sensors (headlight levelling or self-levelling) before removing the old struts.
• Clean the threads before adjusting, and start with the height adjusters in the middle of their range.

After fitting:

• Do not go below ST's minimum height, measured from the wheel hub centre to the wheel arch edge: front 310 mm, rear 305 mm.
• Expect the car to settle a further 5-10 mm once it has been driven, then re-check the height.
• Check there is at least 5 mm clearance between the tyres and the suspension through the full steering and suspension travel.
• Have the headlight aim reset, along with any other height-dependent systems.
• ESP/ABS warning lights can appear after fitting. Some clear after a short drive, others need full steering lock both ways or a reset with a diagnostic tool.
• On cars with radar or camera driver assistance systems, have the calibration checked after lowering.

Upgrade Further

If you only need height adjustment, the ST X Coilovers Peugeot 206/206 CC/206 SW 98-12 has fixed damping and costs less.

Will this fit my Peugeot 206/206 CC/206 SW?

It fits the Peugeot 206/206 CC/206 SW (1998-2012) with the 1.1, 1.1 i, 1.4, 1.4 16V, 1.4 HDI, 1.4 HDI eco 70 and more. Check the Fitment section for the body styles and exclusions, or send us your registration and we will check.

How low will my Peugeot 206/206 CC/206 SW sit?

ST quotes a drop of approx. 35-65 mm at the front and 30-50 mm at the rear compared with standard. The exact drop varies from car to car with engine, equipment and tolerances. ST also sets a minimum: the distance from the wheel hub centre to the wheel arch edge must stay above approx. 310 mm at the front and 305 mm at the rear.

Can I adjust the damping?

Yes. The rebound adjuster has 16 clicks and the kit arrives on ST's base setting for this car. Turn towards firm for tighter body control or towards soft for a more comfortable ride. On some versions only the front dampers are adjustable.

Will the ST XA make my Peugeot 206/206 CC/206 SW ride harshly?

It doesn't have to. The progressive springs keep small bumps under control, and the 16-click rebound adjuster lets you soften the ride for daily use or firm it up for a spirited drive.

Do I need an alignment after fitting?

Yes. Changing the ride height changes camber and toe, so a full four-wheel alignment is needed once the car is at its final height, and again after any later change.

Will my standard wheels fit?

On the original wheel sizes, ST says wheel spacers may be needed to keep enough clearance. Aftermarket wheels should be checked for clearance at your chosen ride height.

Is it road legal in the UK?

Yes. It is designed for road use and comes with a German parts certificate. Keep the ride height within ST's approved range and tell your insurer about the modification.

What is the difference between ST and KW coilovers?

ST is part of the KW group and its coilovers are made in Germany using KW engineering. ST uses galvanised steel strut housings and offers fewer adjustment options than KW's stainless steel Variant range, which keeps the price lower.

Is it covered by a warranty?

Yes, ST covers it against defects in materials and workmanship. If a part ever needs replacing, contact us with your vehicle details and order number.
