ST XA Coilovers BMW 2-Series Active Tourer F45 14-21

ST XA Coilovers for BMW 2-Series Active Tourer F45 (2014-2021) – 40-65 mm Lower, Height Adjustable, 16-Click Rebound Damping

This ST XA kit replaces the standard springs and dampers on the BMW 2-Series Active Tourer F45 (2014-2021) with a height-adjustable coilover set. It lowers the car by approx. 40-60 mm at the front and 45-65 mm at the rear, which sharpens the steering, cuts body roll and closes up the wheel arch gap. The ride height is set on threaded struts, so you can go for a subtle drop or use the full approved range, and change it again later.

The ST XA adds adjustable rebound damping to the height-adjustable ST platform. ST set the dampers up for this car at the factory, and the 16-click rebound adjuster then lets you make the ride softer for comfort or firmer for tighter body control. Shaped (progressive) springs keep the car comfortable over small bumps while adding support as the suspension compresses. ST is part of the KW automotive group, and the kit is developed and made in Germany using KW engineering.

This kit is for the BMW 2-Series Active Tourer F45 (2WD,4WD, Without Adaptive Dampers) with the 214 d, 216 d, 216 i, 218 d, 218 d xDrive, 218 i, 220 d, 220 d xDrive and more, up to a 1150 kg front axle load. Check the Fitment section below before ordering.

Specifications

• Front lowering: approx. 40-60 mm
• Rear lowering: approx. 45-65 mm
• Max front axle load: up to 1150 kg
• Max rear axle load: up to 1290 kg
• Height adjustment: Stepless, on threaded strut housings
• Damping: Adjustable rebound, 16 clicks
• Springs: Shaped progressive springs
• Strut housings: Galvanised steel
• Approval: Parts type approval

Lowering figures are ST's, measured against the standard car. The actual drop varies with engine, equipment and tolerances on each car, and the springs settle slightly after the first few hundred miles.

Key Features

• Stepless ride height adjustment on a coarse, dirt-resistant trapezoidal thread
• 16-click adjustable rebound damping, delivered with a base setting for this vehicle
• Shaped progressive springs for a comfortable ride with firmer support in corners
• Galvanised, multi-sealed steel strut housings for long-term corrosion protection
• Composite spring perches with stainless steel inserts that stay easy to adjust for years
• Dust covers and bump stops protect the damper seals and act as an extra spring under heavy load
• Developed and built in Germany, based on KW engineering
• Supplied with a parts certificate and fitting instructions

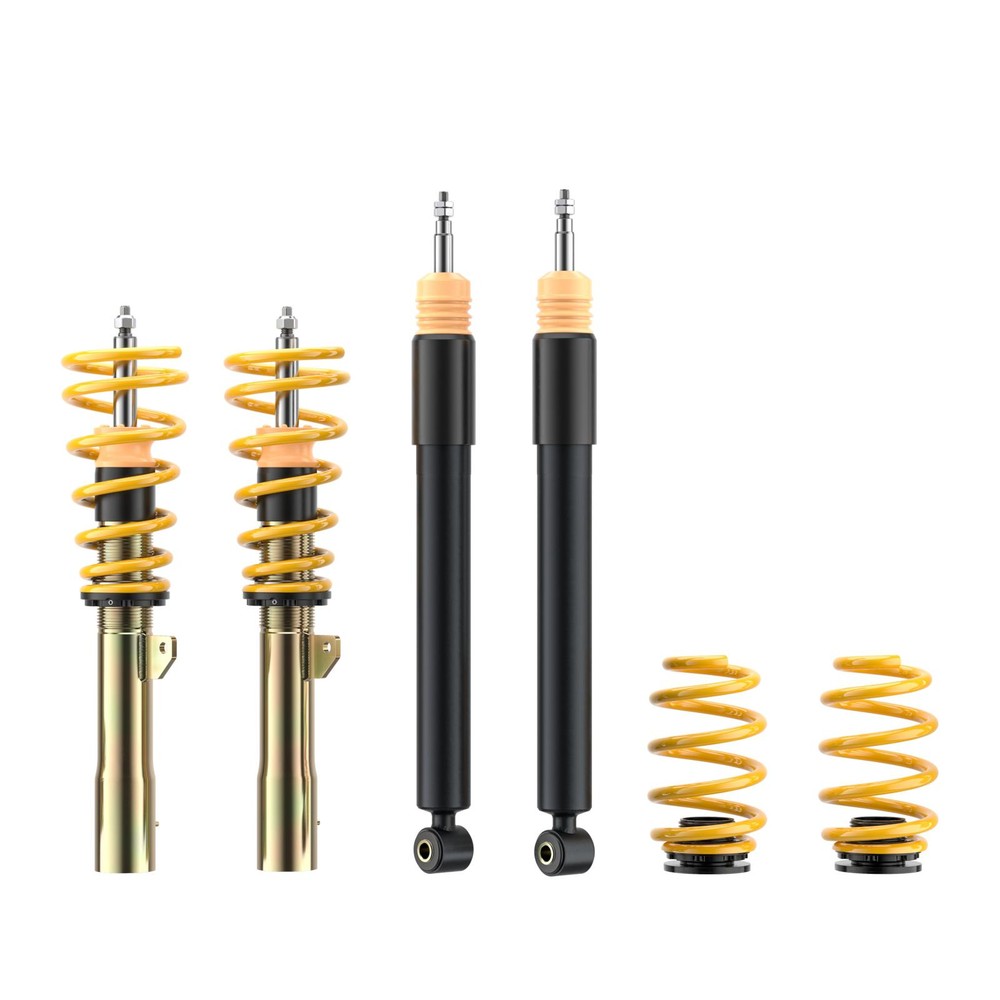

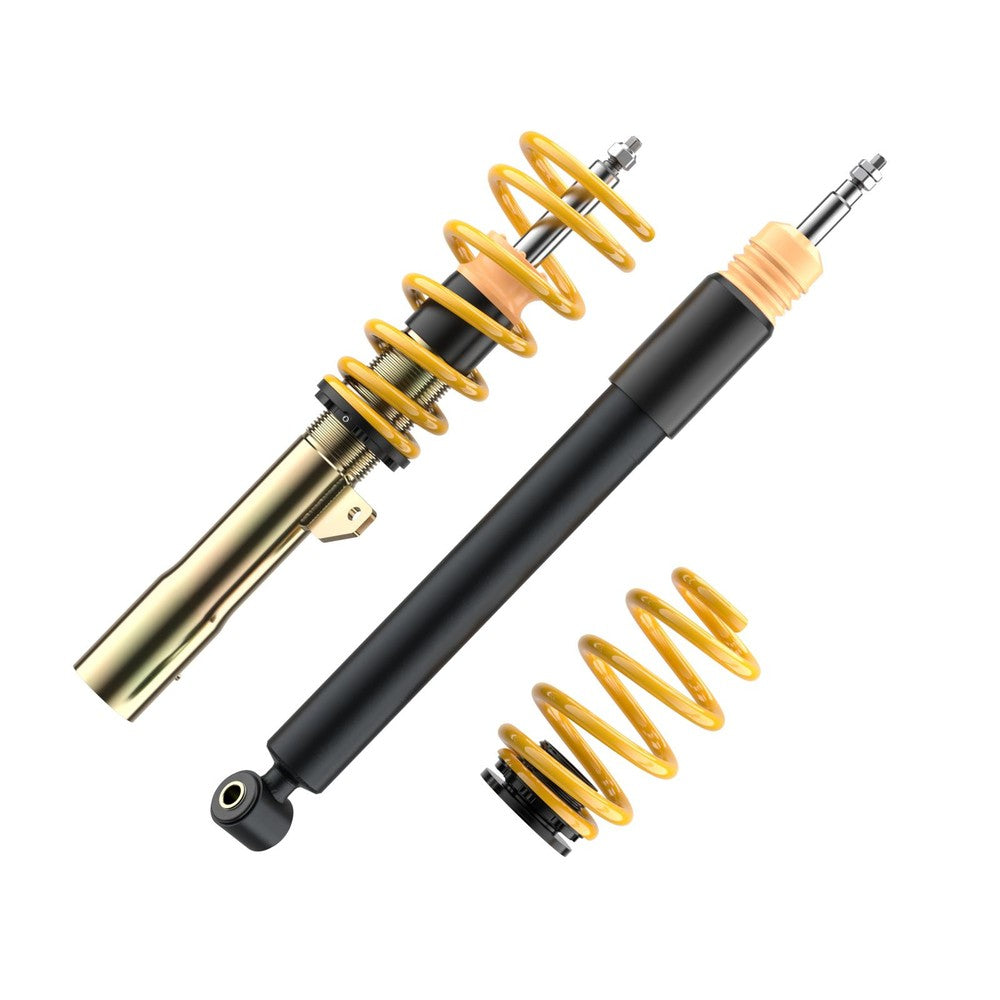

What's in the Kit?

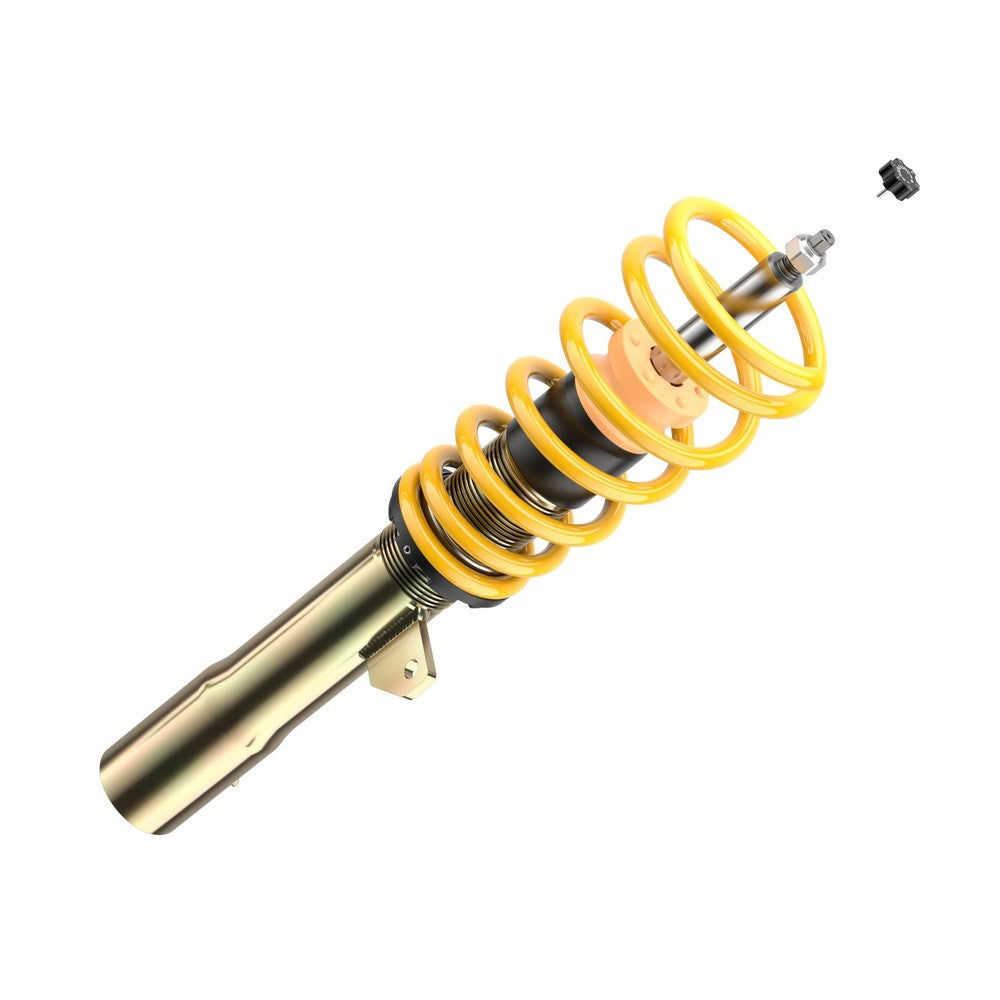

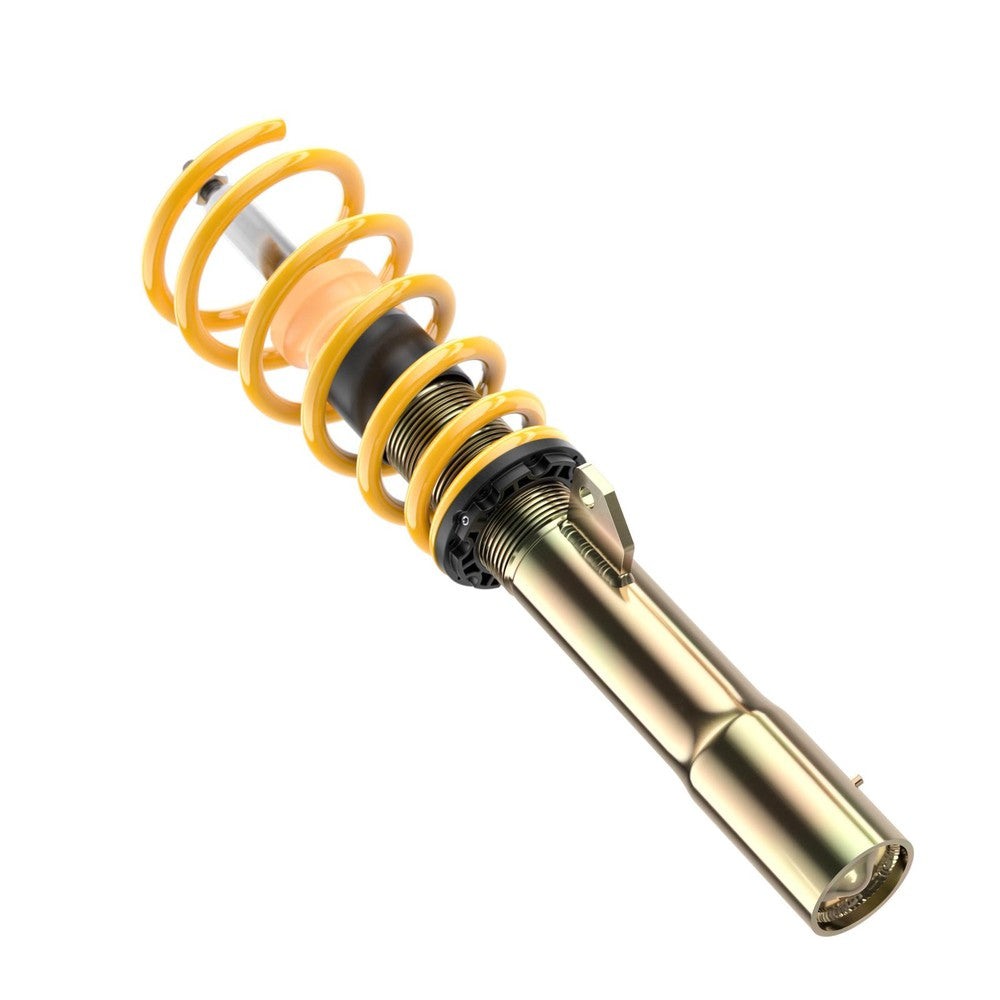

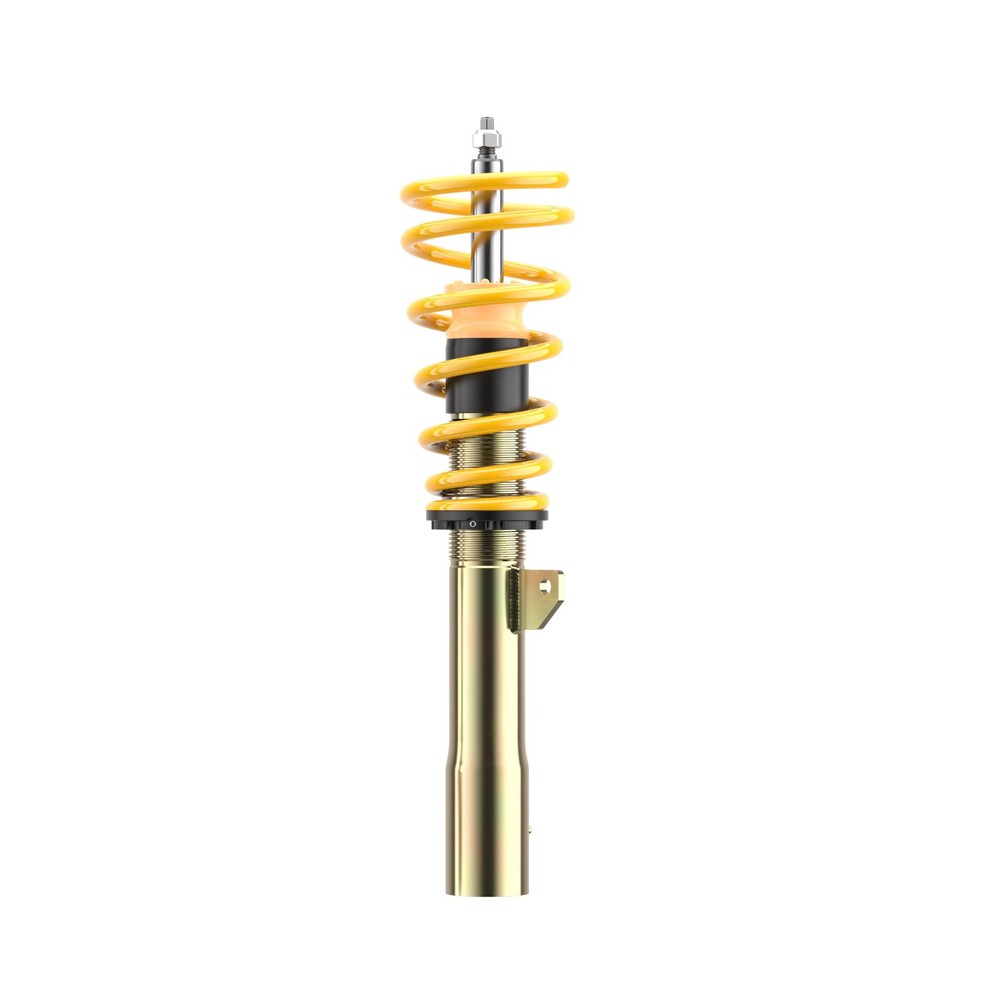

• 2 x height-adjustable front coilover struts with springs

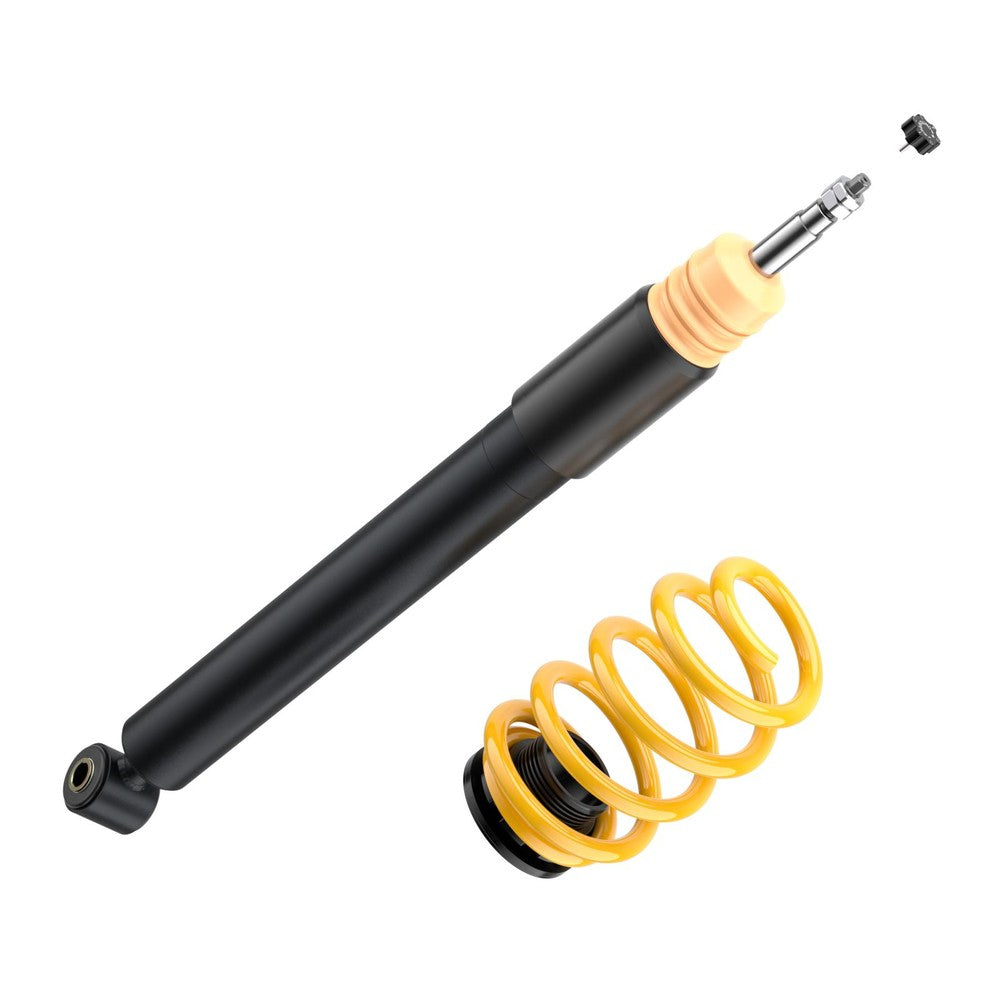

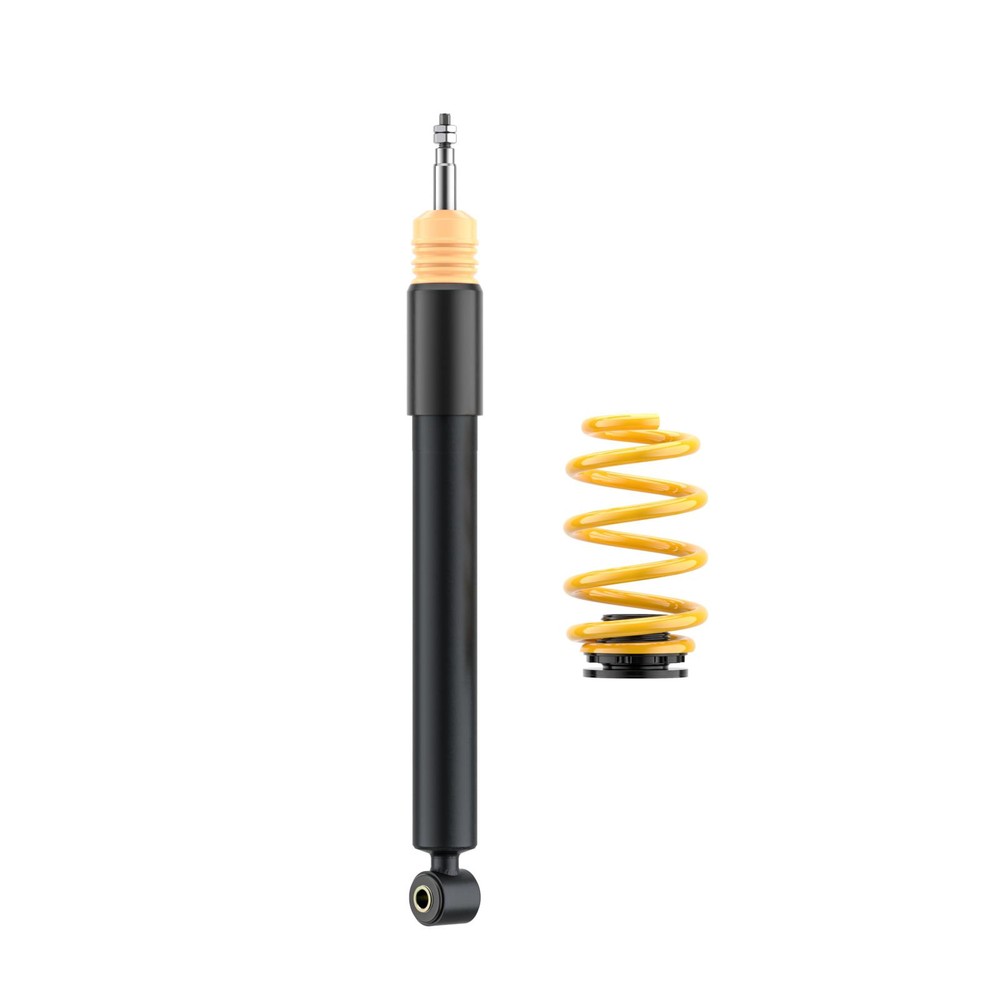

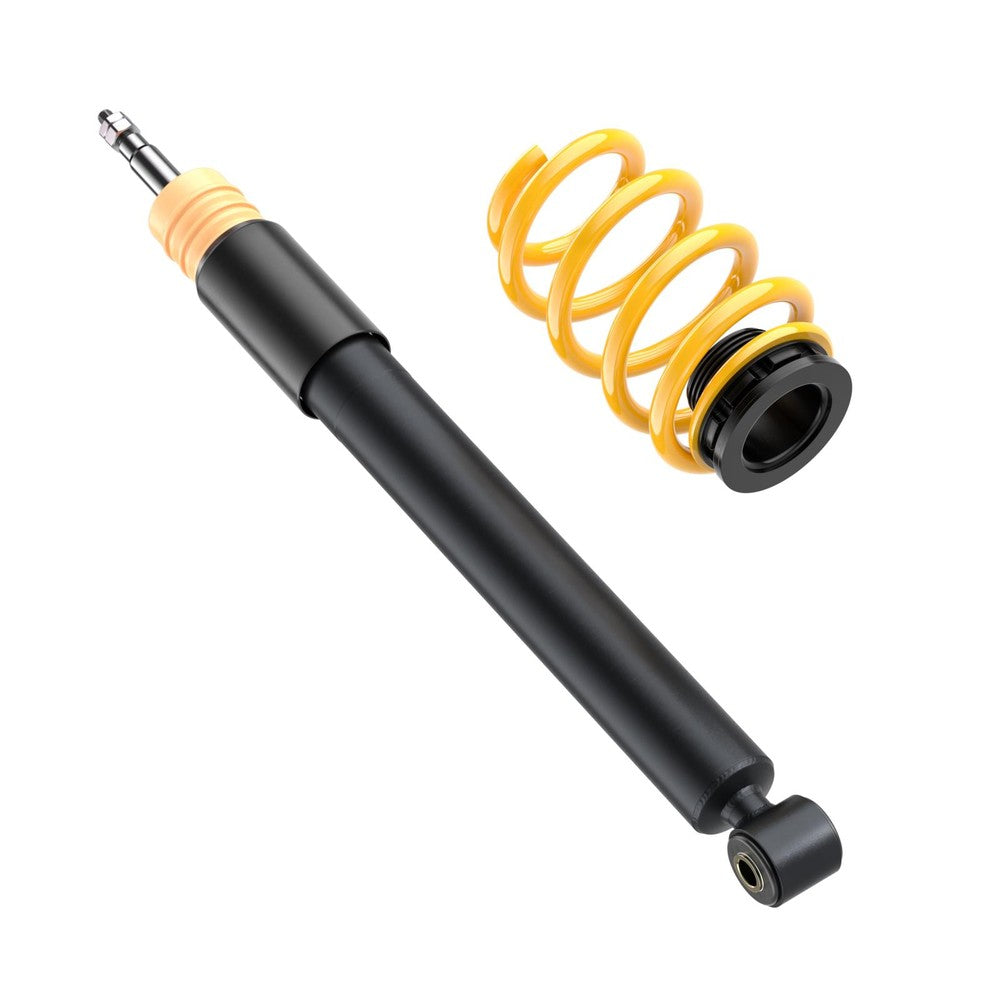

• 2 x rear dampers
• 2 x rear springs with height-adjustable spring seats
• Composite spring perches with stainless steel inserts
• Dust covers and bump stops
• Parts certificate and fitting instructions

Please note: the photos are ST's own images of this kit. Small details such as brackets can differ from the photos.

Fitment

• BMW 2-Series Active Tourer F45 (Nov 2013 to Oct 2021)
• Engines: 214 d, 216 d, 216 i, 218 d, 218 d xDrive, 218 i, 220 d, 220 d xDrive, 220 i, 225 i, 225 i xDrive

Not suitable for: Cars with electronic damper control (adaptive dampers). Also not for other generations or body styles, which need their own kit, such as ST XA Coilovers BMW 2-Series F22/F23 14-21, ST XA Coilovers BMW 2-Series M235i/M240i F22/F23 14-21, ST XA Coilovers BMW 2-Series Gran Tourer F46 15-22.

Installation

Fitting means removing the original struts, springs and dampers and fitting the ST units in their place. We recommend a qualified workshop experienced with coilovers. A spring compressor is needed to strip down the original front struts. The original top mounts, bearings and fixings are reused, so check them for wear and replace any that are worn. Set the ride height within the approved range, tighten the suspension bolts with the car's weight on its wheels, and torque everything to the manufacturer's figures. A four-wheel alignment is required once the car is at its final ride height. Re-check the height and alignment after the first few hundred miles, once the springs have settled.

Download ST's documents for this kit: Fitting instructions (PDF), Damper adjustment guide (PDF).

The dampers arrive on ST's base setting for this car. Make small changes to the rebound adjuster and test before going further.

Before you start:

• The original front dust covers are trimmed and reused, as shown in ST's instructions.
• Disconnect any ride height sensors (headlight levelling or self-levelling) before removing the old struts.
• Clean the threads before adjusting, and start with the height adjusters in the middle of their range.

After fitting:

• Expect the car to settle a further 5-10 mm once it has been driven, then re-check the height.
• Check there is at least 5 mm clearance between the tyres and the suspension through the full steering and suspension travel.
• Have the headlight aim reset, along with any other height-dependent systems.
• ESP/ABS warning lights can appear after fitting. Some clear after a short drive, others need full steering lock both ways or a reset with a diagnostic tool.
• On cars with radar or camera driver assistance systems, have the calibration checked after lowering.

Upgrade Further

If you only need height adjustment, the ST X Coilovers BMW 2-Series Active Tourer F45 14-21 has fixed damping and costs less.

Will this fit my BMW 2-Series Active Tourer F45?

It fits the BMW 2-Series Active Tourer F45 (2014-2021) with the 214 d, 216 d, 216 i, 218 d, 218 d xDrive, 218 i and more. Check the Fitment section for the body styles and exclusions, or send us your registration and we will check.

How low will my BMW 2-Series Active Tourer F45 sit?

ST quotes a drop of approx. 40-60 mm at the front and 45-65 mm at the rear compared with standard. The exact drop varies from car to car with engine, equipment and tolerances.

Can I adjust the damping?

Yes. The rebound adjuster has 16 clicks and the kit arrives on ST's base setting for this car. Turn towards firm for tighter body control or towards soft for a more comfortable ride.

Will the ST XA make my BMW 2-Series Active Tourer F45 ride harshly?

It doesn't have to. The progressive springs keep small bumps under control, and the 16-click rebound adjuster lets you soften the ride for daily use or firm it up for a spirited drive.

Do I need an alignment after fitting?

Yes. Changing the ride height changes camber and toe, so a full four-wheel alignment is needed once the car is at its final height, and again after any later change.

My car has adaptive dampers. Will this kit fit?

No. This kit is not for cars with electronic damper control. Contact us with your registration and we will check what is available.

Is it road legal in the UK?

Yes. It is designed for road use and comes with a German parts certificate. Keep the ride height within ST's approved range and tell your insurer about the modification.

What is the difference between ST and KW coilovers?

ST is part of the KW group and its coilovers are made in Germany using KW engineering. ST uses galvanised steel strut housings and offers fewer adjustment options than KW's stainless steel Variant range, which keeps the price lower.

Is it covered by a warranty?

Yes, ST covers it against defects in materials and workmanship. If a part ever needs replacing, contact us with your vehicle details and order number.
