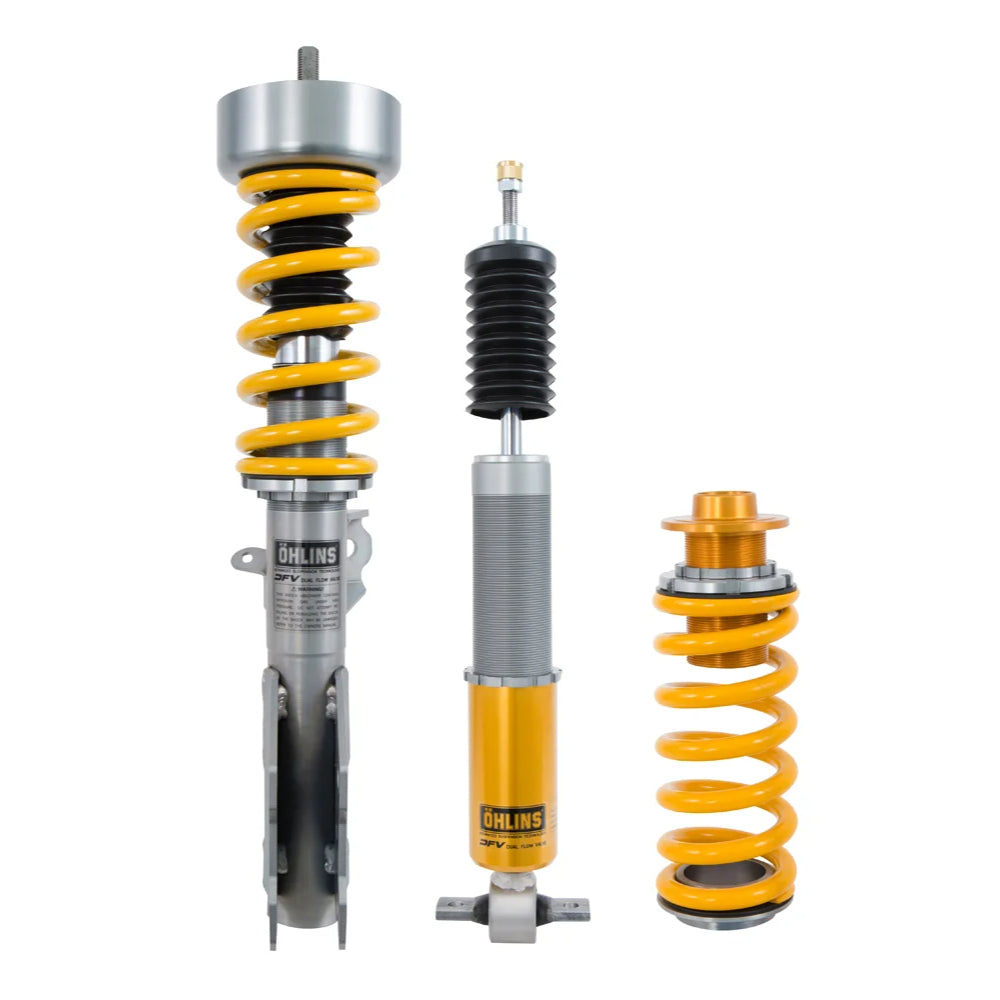

Öhlins Road & Track Coilovers for Seat Leon Leon Cupra 1P 2WD (2005-2012) – 1-Way Adjustable DFV Coilovers for Road and Track
Öhlins Road & Track coilovers for the Seat Leon Leon Cupra 1P 2WD (2005-2012). Öhlins Road & Track coilovers give a ride smooth enough for everyday driving while still performing properly on track. They bring Öhlins' experience of high-end performance dampers to the road at a sensible price.
The key to the ride is Öhlins' Dual Flow Valve (DFV). This extra valve works alongside the main piston and lets more oil flow during sudden damper movements, so the car stays supple over broken roads and sharp high-speed bumps. A single adjuster sets compression and rebound together, making it easy to switch between firmer and softer settings.
On many applications the ride height can be adjusted without changing the fitted length or spring preload, and preload can also be set independently. In most cases the dampers suit the car straight from the box.
Specifications
- Damping: 1-way, compression and rebound adjusted together
- Springs: Included in this kit
- Top mounts: Not required for this application
- Cancellation kit: Required – Öhlins 35020-14. Not included, sold separately
- TÜV (Germany): Approved
Key Features
- Öhlins Dual Flow Valve (DFV) technology for a supple ride
- 1-way adjustment of compression and rebound together
- Easy switching between firmer and softer settings
- Ride height adjustable without affecting fitted length or preload on many applications
- Independent spring preload adjustment
- Suits most drivers straight from the box
What's in the Kit?
- 2 x front Öhlins DFV dampers
- 2 x rear Öhlins DFV dampers
- Öhlins springs
Please note: an electronic damper cancellation kit is required (Öhlins 35020-14. Not included, sold separately).
Fitment
- Seat Leon Leon Cupra 1P 2WD (2005-2012)
Not suitable for: models or versions not listed above. Please check your model and chassis code before ordering.
Installation
The kit replaces the standard dampers and springs. Set the ride height and spring preload, let the suspension settle, then recheck the height and have a four-wheel alignment carried out. We recommend professional fitting.
Please note: The car has factory electronic dampers, so the Öhlins cancellation kit must be fitted at the same time to avoid warning lights.
Upgrade Further
Required for this car: Ohlins DCC Cancellation Kit VW Golf MK6 Scirocco MK3.
How is the damping adjusted?
A single adjuster on each damper sets compression and rebound together, so you can quickly switch between firmer and softer settings.
Are these suitable for daily driving?
Yes. The Road & Track range is designed to ride smoothly enough for everyday use, with the DFV valve helping over rough roads.
Do I need top mounts?
No. Top mounts are not required for this car.
Do I need a cancellation kit?
Yes. This car has electronic dampers, so you need Öhlins 35020-14. Not included, sold separately.
Is it TÜV approved?
Yes, it is TÜV approved in Germany.
Do I need a wheel alignment after fitting?
Yes. Changing the ride height alters the suspension geometry, so a four-wheel alignment should be carried out once the car has settled.
What warranty is included?
Öhlins products are covered against defects in materials and workmanship. Contact us if you have a problem.
