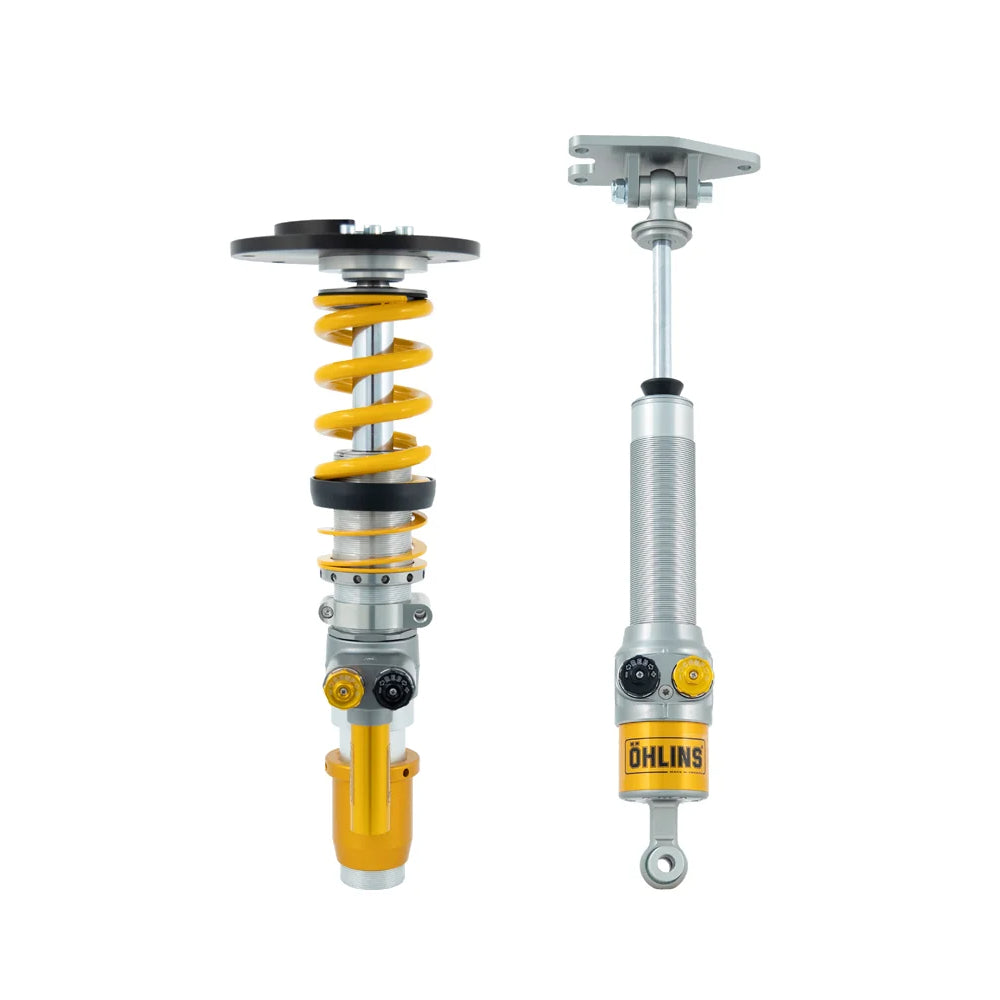

Öhlins Advanced Trackday Coilovers for BMW 1M Coupe E82 (2011-2012) – 2-Way Adjustable TTX Coilovers for Track Use
Öhlins Advanced Trackday coilovers for the BMW 1M Coupe E82 (2011-2012). The Öhlins Advanced Trackday kit is developed from Öhlins' experience in GT and touring car racing. It turns a road car into a precise track tool while keeping it enjoyable to drive home afterwards.
At its heart is Öhlins' TTX twin-tube damper, with separate compression and rebound adjustment. That lets you tune the car for different circuits, driving styles and tyres, including semi-slicks. Ride height is individually adjustable so the setup can be tailored without compromise.
The kit is fully rebuildable and corrosion tested to ISO 9227, and comes with Öhlins main and helper springs specified for this car.
Specifications
- Damping: 2-way, separate compression and rebound
- Springs: Included in this kit – front 48140-25 (main) 05173-12 (helper), rear 48170-37 (main) 05173-12 (helper)
- Top mounts: Required – Öhlins 05926-21 (front) 05926-11 (rear). Not included, sold separately
- Cancellation kit: Required – Öhlins 35020-04. Not included, sold separately
- TÜV (Germany): Not approved for this application
Key Features
- Öhlins TTX twin-tube damper technology
- 2-way adjustment: separate compression and rebound
- Developed from GT and touring car motorsport
- Suits semi-slick tyres and varying track conditions
- Individual ride height adjustment
- Main and helper springs included
- Fully rebuildable and corrosion tested to ISO 9227
What's in the Kit?
- 2 x front Öhlins TTX dampers
- 2 x rear Öhlins TTX dampers
- Öhlins springs (main and helper)
Please note: top mounts are required for this car (Öhlins 05926-21 (front) 05926-11 (rear). Not included, sold separately); an electronic damper cancellation kit is required (Öhlins 35020-04. Not included, sold separately).
Fitment
- BMW 1M Coupe E82 (2011-2012)
Not suitable for: models or versions not listed above. Other versions for this car: Ohlins Road & Track Coilovers DFV (1-way) BMW 1M Coupe E82 11-12.
Installation
The kit replaces the standard dampers and springs. Set the ride height and spring preload, let the suspension settle, then recheck the height and have a four-wheel alignment carried out. We recommend professional fitting.
Please note: Top mount + drop link set front & top mount set rear mandatory. The car has factory electronic dampers, so the Öhlins cancellation kit must be fitted at the same time to avoid warning lights.
Upgrade Further
Required for this car: Ohlins EDC Cancellation Kit BMW M3 E90 E92.
How is the damping adjusted?
Compression and rebound are adjusted separately, so you can tune the car for different circuits, tyres and driving styles.
Can I use these on the road?
Yes. They are designed for track use but keep the car enjoyable to drive on the road.
Can the dampers be rebuilt?
Yes. Öhlins TTX dampers are fully rebuildable.
Do I need top mounts?
Yes. Top mounts are required and sold separately (Öhlins 05926-21 (front) 05926-11 (rear). Not included, sold separately).
Do I need a cancellation kit?
Yes. This car has electronic dampers, so you need Öhlins 35020-04. Not included, sold separately.
Is it TÜV approved?
Not for this application.
Do I need a wheel alignment after fitting?
Yes. Changing the ride height alters the suspension geometry, so a four-wheel alignment should be carried out once the car has settled.
What warranty is included?
Öhlins Advanced Trackday kits come with a two-year warranty.
