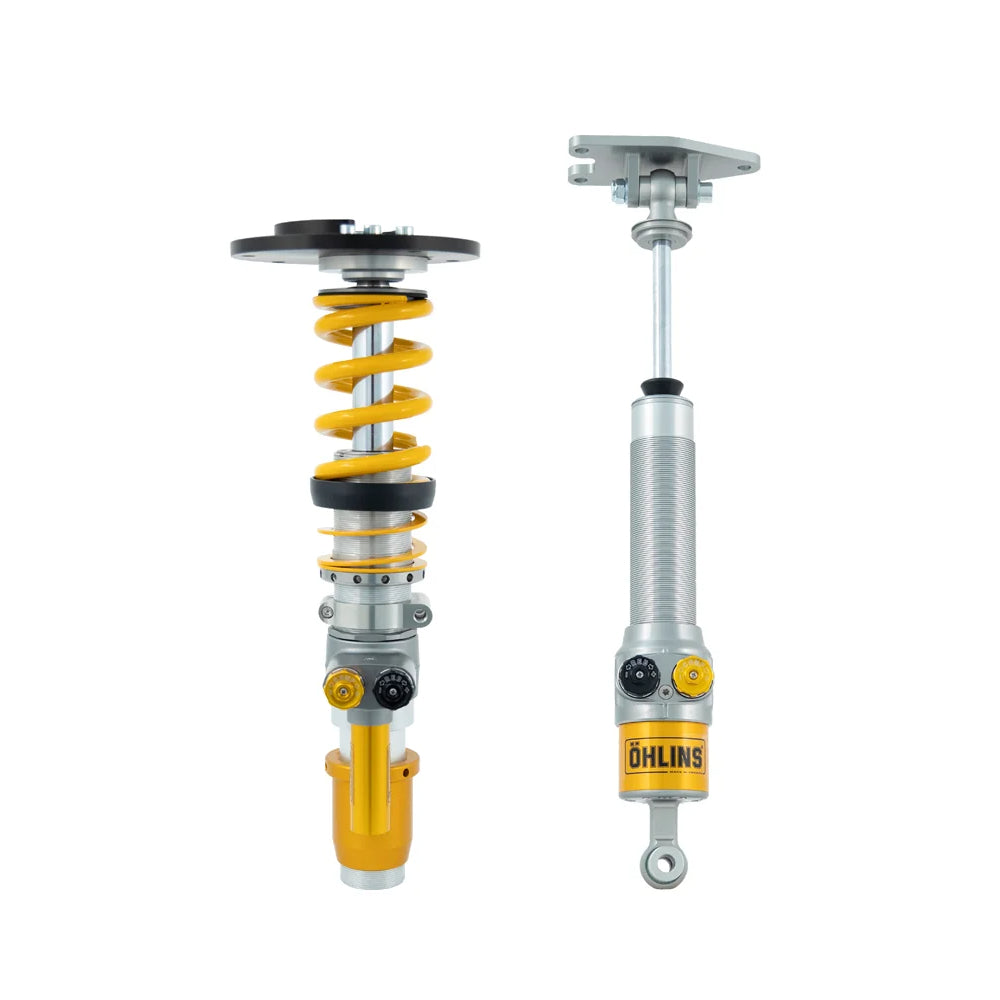

Öhlins Advanced Trackday Coilovers for Audi R8 4S (2015 on) – 2-Way Adjustable TTX Coilovers for Track Use
Öhlins Advanced Trackday coilovers for the Audi R8 4S (2015 on). This kit is the Trackday Kit version. The Öhlins Advanced Trackday kit is developed from Öhlins' experience in GT and touring car racing. It turns a road car into a precise track tool while keeping it enjoyable to drive home afterwards.
At its heart is Öhlins' TTX twin-tube damper, with separate compression and rebound adjustment. That lets you tune the car for different circuits, driving styles and tyres, including semi-slicks. Ride height is individually adjustable so the setup can be tailored without compromise.
The kit is fully rebuildable and corrosion tested to ISO 9227, and comes with Öhlins main and helper springs specified for this car.
Specifications
- Damping: 2-way, separate compression and rebound
- Springs: Included in this kit – front 48140-25 (main), 05173-12 (helper), rear 48140-25 (main), 05173-12 (helper)
- Top mounts: Not required for this application
- Cancellation kit: Required – Öhlins 35020-28. Not included, sold separately
- TÜV (Germany): Approved
Key Features
- Öhlins TTX twin-tube damper technology
- 2-way adjustment: separate compression and rebound
- Developed from GT and touring car motorsport
- Suits semi-slick tyres and varying track conditions
- Individual ride height adjustment
- Main and helper springs included
- Fully rebuildable and corrosion tested to ISO 9227
What's in the Kit?
- 2 x front Öhlins TTX dampers
- 2 x rear Öhlins TTX dampers
- Öhlins springs (main and helper)
Please note: an electronic damper cancellation kit is required (Öhlins 35020-28. Not included, sold separately).
Fitment
- Audi R8 4S (2015 on)
Not suitable for: models or versions not listed above. Other versions for this car: Ohlins Advanced Trackday Coilovers TTX (2-way) Audi R8 4S 15+ Motorsport Kit.
Installation
The kit replaces the standard dampers and springs. Set the ride height and spring preload, let the suspension settle, then recheck the height and have a four-wheel alignment carried out. We recommend professional fitting.
Please note: Softer spring rates. The car has factory electronic dampers, so the Öhlins cancellation kit must be fitted at the same time to avoid warning lights.
Upgrade Further
Required for this car: Ohlins Magnetic Ride Cancellation Kit Audi R8 Gen2 15+.
How is the damping adjusted?
Compression and rebound are adjusted separately, so you can tune the car for different circuits, tyres and driving styles.
Can I use these on the road?
Yes. They are designed for track use but keep the car enjoyable to drive on the road.
Can the dampers be rebuilt?
Yes. Öhlins TTX dampers are fully rebuildable.
Do I need top mounts?
No. Top mounts are not required for this car.
Do I need a cancellation kit?
Yes. This car has electronic dampers, so you need Öhlins 35020-28. Not included, sold separately.
Is it TÜV approved?
Yes, it is TÜV approved in Germany.
Do I need a wheel alignment after fitting?
Yes. Changing the ride height alters the suspension geometry, so a four-wheel alignment should be carried out once the car has settled.
What warranty is included?
Öhlins Advanced Trackday kits come with a two-year warranty.
