Technical Info
Description

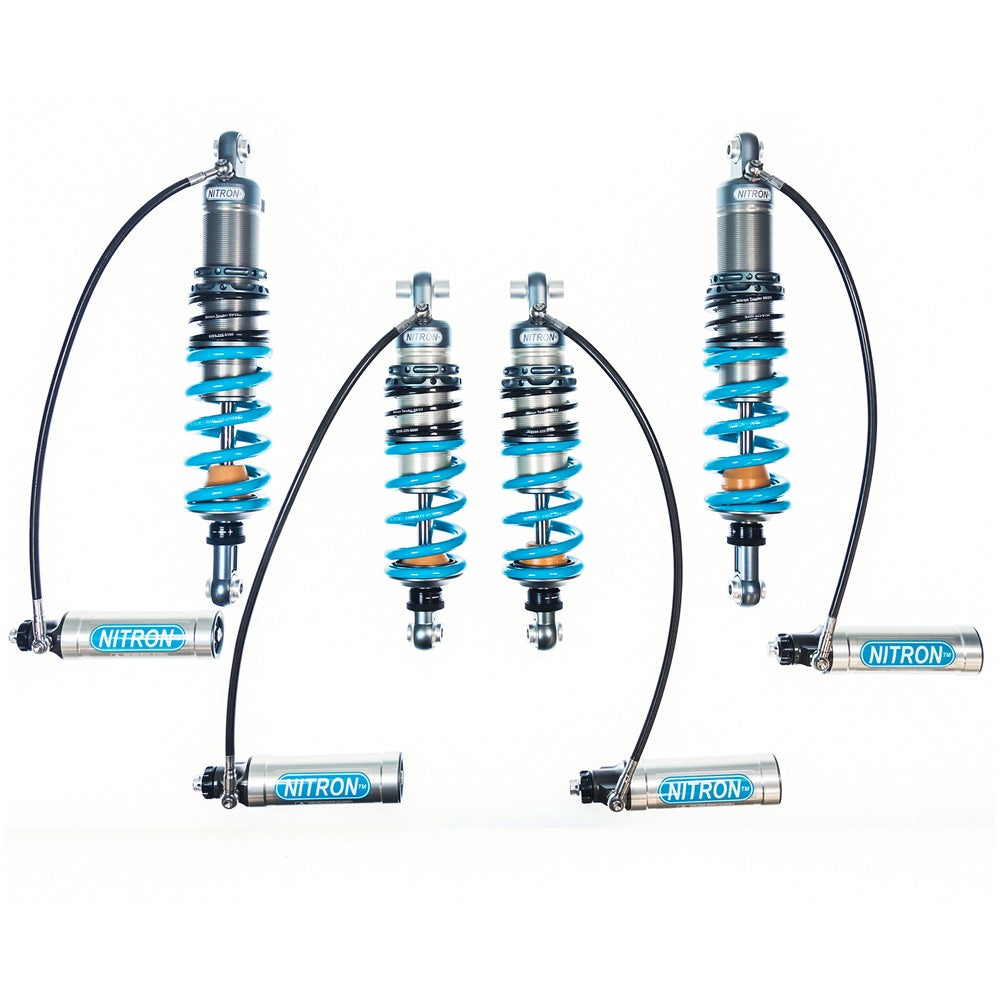

Nitron RacePro 3 Coilovers for Lotus Elise S2 (Toyota engine) (2005-2011) – 46mm 3-Way Adjustable Race Coilovers
Nitron RacePro 3 coilovers for the Lotus Elise S2 (Toyota engine) (2005-2011), hand built to order for serious race and track use.
The RacePro 3 uses Nitron's 46mm race piston with 3-way independent damping adjustment. It is developed from the dampers run on the original factory Lotus Exige GT3 race cars and uses Nitron's very best parts.
The dampers run inverted to reduce unsprung mass and arrive preset with a full set of bearing spacers. Helper springs front and rear increase rear wheel droop for extra cornering grip, and custom spring rates are available at no extra charge.
Specifications
- Damping: 3-way independent
- Reservoir: Remote Reservoir
- Mounting brackets: Included RHD or LHD
- Spring Spec: front 550 lbs/in (96 N/mm), rear 700 lbs/in (123 N/mm)
Key Features
- 46mm race piston
- 3-way independent damping adjustment
- Helper springs front and rear for extra rear droop
- Inverted dampers for reduced unsprung mass
- Preset with bearing spacers, ready to fit
- Custom spring rates at no extra charge
What's in the Kit?
- 4 x 3-way adjustable dampers with fitted springs
- Helper springs front and rear
- Bearing spacers, preset and ready to fit
- Mounting brackets (RHD or LHD)
Please note: images are for illustration only. Specific details, finishes and end fittings may differ from those shown.
Fitment
- Lotus Elise S2 (Toyota engine) (2005-2011)
Not suitable for: models or sub-models not listed above. Please check your model and sub model before ordering.
Installation
The kit replaces the standard dampers and springs. Set the ride height and preload, let the suspension settle, then recheck the height and have a four-wheel alignment carried out. We recommend professional fitting.
All Nitron shocks are hand made to order. Lead times are normally 2-3 weeks, but can be longer at busy times, so contact us for an up-to-date estimate.
How is the damping adjusted?
The dampers have 3-way independent adjustment.
Can I have different spring rates?
Yes. Custom spring rates are available at no extra charge.
Can the dampers be serviced?
Yes. Nitron dampers are fully serviceable, so they can be rebuilt and refreshed rather than replaced.
Do I need a wheel alignment after fitting?
Yes. Changing the suspension and ride height alters the geometry, so a four-wheel alignment should be carried out once the car has settled.
How long will it take to arrive?
All Nitron shocks are hand made to order. Lead times are normally 2-3 weeks, but contact us for an up-to-date estimate.
What warranty is included?
Nitron products are covered against defects in materials and workmanship. Contact us if you have a problem with your kit.
