Technical Info
Description
Nitron elec-TRON RS3 Coilovers for Porsche Cayman 3.8 GT4 981 (2015-2016) – Semi-Active 3-Way Coilovers Using OEM Top Plates
Nitron elec-TRON RS3 coilovers for the Porsche Cayman 3.8 GT4 981 (2015-2016), hand built to order for drivers who want semi-active damping with manual compression control.
Please note: This kit works with the Porsche PASM system, so no additional products are needed.
The elec-TRON RS3 combines the electronic solenoid valve with manual high and low-speed compression adjustment, while keeping the OEM top plates. Piggyback or remote reservoirs make compression changes quick and simple, and hose shocks use Nitron's Bi-Axis fittings.
Nitron's elec-TRON proportional solenoid valve gives each damper its own electronically controlled valve, so damping can be adjusted individually at every wheel. The valve works across a 300-1800mA range and moves from full hard to full soft in around 6 to 8 milliseconds, adjusting both compression and rebound by fine-tuning the bleed of the shim stack inside Nitron's gas-pressurised monotube damper.
Specifications
- Damping: Electronic valve plus manual high and low-speed compression
- Reservoir: Hose
- Rear suspension type: OEM (Original Equipment)
- Droplinks included: No
- Fast Road Spec: front 400 lbs/in (70 N/mm), rear 514 lbs/in (90 N/mm)
- Track Day Spec: front 514 lbs/in (90 N/mm), rear 628 lbs/in (110 N/mm)
Key Features
- Nitron proportional solenoid valve on every damper
- Manual high and low-speed compression adjustment
- Uses the OEM top plates
- Bi-Axis hose fittings
- Gas-pressurised monotube construction

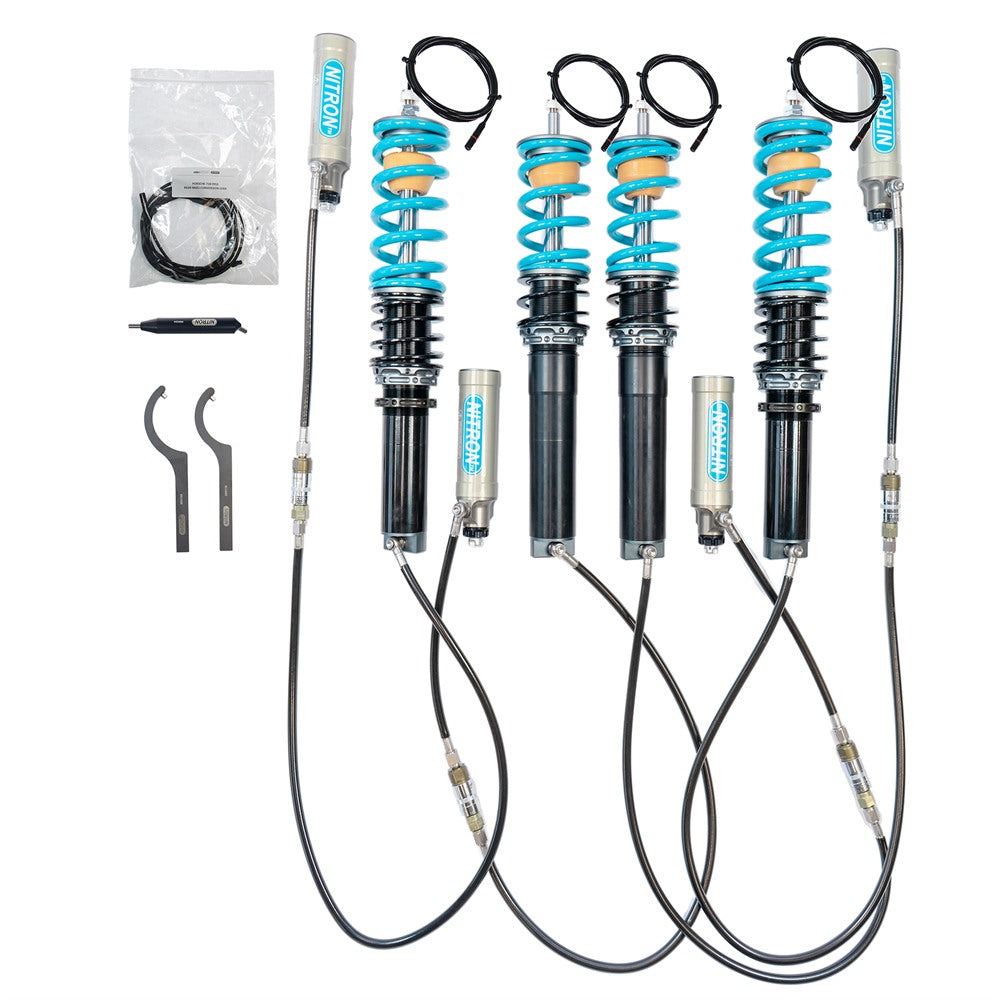

What's in the Kit?
- 2 x front coilovers with springs
- 2 x rear dampers with springs
Please note: images are for illustration only. Specific details, finishes and end fittings may differ from those shown.
Fitment
- Porsche Cayman 3.8 GT4 981 (2015-2016)
Not suitable for: models or sub-models not listed above. Please check your model and sub model before ordering.
Installation
The kit replaces the standard dampers and springs. It uses the original top mounts. Set the ride height and preload, let the suspension settle, then recheck the height and have a four-wheel alignment carried out. We recommend professional fitting.
Please note: OE top mounts used.
All Nitron shocks are hand made to order. Lead times are normally 2-3 weeks, but can be longer at busy times, so contact us for an up-to-date estimate.
Should I choose Fast Road or Track Day spec?
Fast Road Spec uses softer springs for comfort on the road, while Track Day Spec uses stiffer springs for track use. Both are listed under Specifications above. Choose the one that matches how you use the car most.
How is the damping adjusted?
The elec-TRON valve controls damping electronically, with manual high and low-speed compression adjustment to set the baseline.
Do I need anything else to run this kit?
This kit works with the Porsche PASM system, so no additional products are needed.
Can I have different spring rates?
Yes. Every kit is built and sprung to order, so contact us before ordering to discuss your spring rates.
Can the dampers be serviced?
Yes. Nitron dampers are fully serviceable, so they can be rebuilt and refreshed rather than replaced.
Do I need a wheel alignment after fitting?
Yes. Changing the suspension and ride height alters the geometry, so a four-wheel alignment should be carried out once the car has settled.
How long will it take to arrive?
All Nitron shocks are hand made to order. Lead times are normally 2-3 weeks, but contact us for an up-to-date estimate.
What warranty is included?
Nitron products are covered against defects in materials and workmanship. Contact us if you have a problem with your kit.
