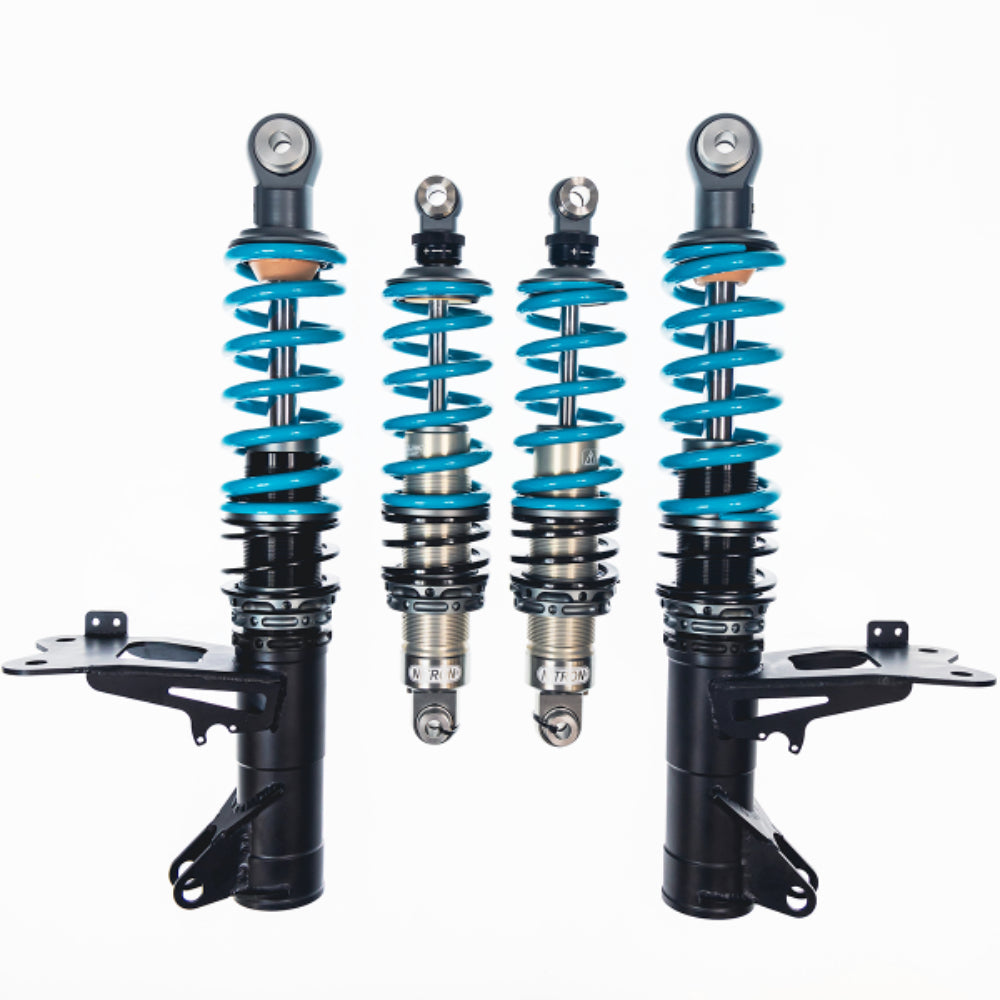

Nitron elec-TRON R1 Coilovers for VW Golf Mk7 R 4motion (2013-2020) – Electronically Controlled Semi-Active Coilovers
Nitron elec-TRON R1 coilovers for the VW Golf Mk7 R 4motion (2013-2020), hand built to order for road and track driving with semi-active damping.
Please note: This kit needs the Nitron DSC Sport Box to work (sold separately).
On the elec-TRON R1 all damping is controlled electronically by the solenoid valve, with no manual adjusters. The kit uses Nitron adjustable top mounts and race springs, giving a wide range of geometry adjustment, and shares its core technology with the R3.
Nitron's elec-TRON proportional solenoid valve gives each damper its own electronically controlled valve, so damping can be adjusted individually at every wheel. The valve works across a 300-1800mA range and moves from full hard to full soft in around 6 to 8 milliseconds, adjusting both compression and rebound by fine-tuning the bleed of the shim stack inside Nitron's gas-pressurised monotube damper.
Specifications
- Damping: Electronic (proportional solenoid valve, no manual adjusters)
- Rear suspension type: Coilover
- Droplinks included: No
- Fast Road Spec: front 400 lbs/in (70 N/mm), rear 400 lbs/in (70 N/mm) coilover
Key Features
- Nitron proportional solenoid valve on every damper
- Damping adjusted individually at each wheel
- 300-1800mA operating range with a 6 to 8 millisecond response
- Adjustable top mounts and race springs
- Gas-pressurised monotube construction
- Shares core technology with the R3
What's in the Kit?
- 2 x front coilovers with springs
- 2 x rear dampers with springs (coilover rear)
- Nitron adjustable top mounts
Please note: images are for illustration only. Specific details, finishes and end fittings may differ from those shown.
Fitment
- VW Golf Mk7 R 4motion (2013-2020)
- Sub models: 2.0 TSI R 4motion
Not suitable for: models or sub-models not listed above. Please check your model and sub model before ordering.
Installation
The kit replaces the standard dampers and springs. Set the ride height and preload, let the suspension settle, then recheck the height and have a four-wheel alignment carried out. We recommend professional fitting.
All Nitron shocks are hand made to order. Lead times are normally 2-3 weeks, but can be longer at busy times, so contact us for an up-to-date estimate.
How is the damping adjusted?
Damping is controlled electronically by the elec-TRON valve. There are no manual adjusters.
Do I need anything else to run this kit?
This kit needs the Nitron DSC Sport Box to work (sold separately).
Can I have different spring rates?
Yes. Every kit is built and sprung to order, so contact us before ordering to discuss your spring rates.
Can the dampers be serviced?
Yes. Nitron dampers are fully serviceable, so they can be rebuilt and refreshed rather than replaced.
Do I need a wheel alignment after fitting?
Yes. Changing the suspension and ride height alters the geometry, so a four-wheel alignment should be carried out once the car has settled.
How long will it take to arrive?
All Nitron shocks are hand made to order. Lead times are normally 2-3 weeks, but contact us for an up-to-date estimate.
What warranty is included?
Nitron products are covered against defects in materials and workmanship. Contact us if you have a problem with your kit.
