Technical Info
Description
Nitron elec-TRON DCU for Chevrolet Corvette C8 (2020 on) – Damper Control Unit for Semi-Active Damping
The Nitron Damper Control Unit (DCU) turns elec-TRON dampers on the Chevrolet Corvette C8 (2020 on) into a semi-active system. It reads data about the car, its attitude and the forces acting on it under braking, cornering and acceleration, and sets each elec-TRON valve accordingly, updating every 5 milliseconds.
A 6-position rotary switch selects from pre-installed damping maps (three passive and three adaptive). Damping is still optimised continuously, but your selection sets the overall level.
Specifications
- Processor: Arm Cortex-M4
- Sensors: 2 x 3-axis accelerometers, 1 x 3-axis gyroscope
- Control rate: 200Hz, independent control of 4 dampers
- Damping maps: 3 passive and 3 adaptive
Key Features
- Turns elec-TRON dampers into a semi-active system
- Updates damping every 5 milliseconds
- 6-position rotary switch with 3 passive and 3 adaptive maps
- Independent control of 4 dampers
- Accelerometers and gyroscope built in
- Fully resin bonded
- Ideal for restomod applications

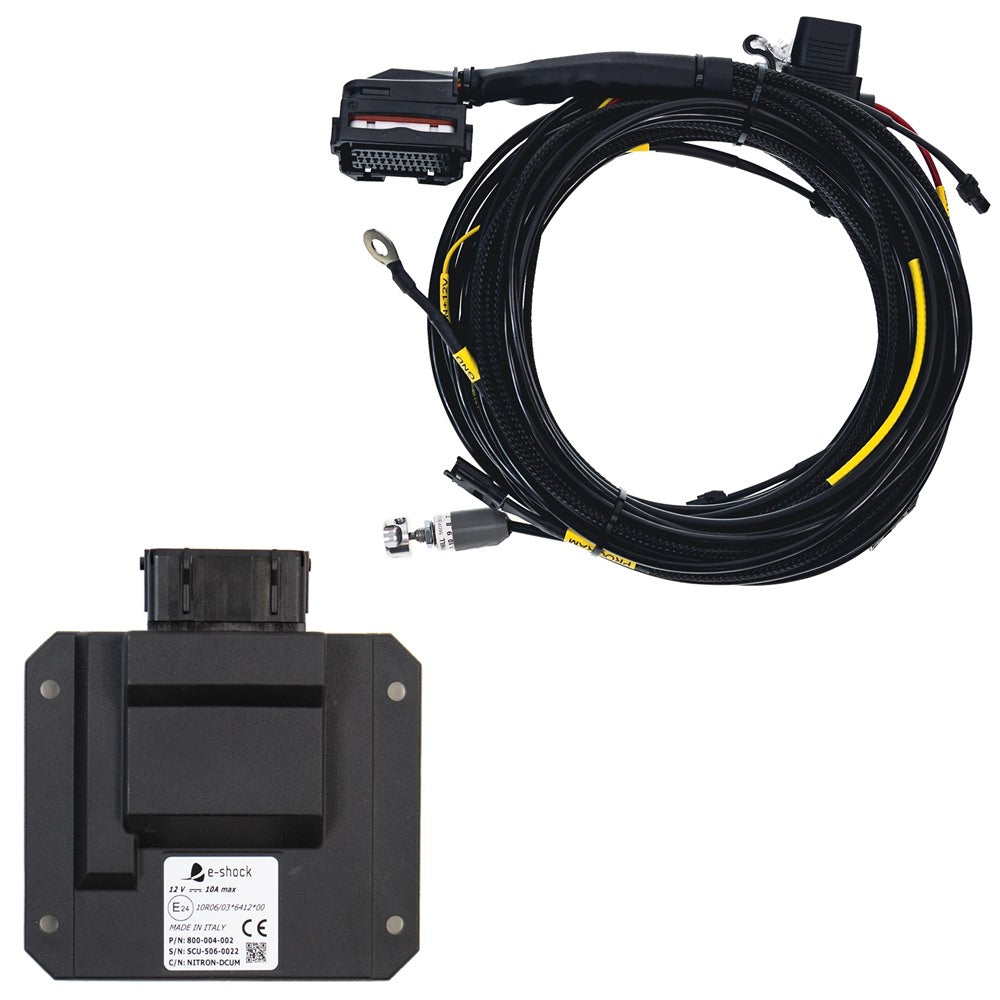

What's in the Kit?
- Nitron elec-TRON DCU
- Wiring harness and switch
Fitment
- Chevrolet Corvette C8 (2020 on)
- Sub models: Stingray, Z51, Z06
Not suitable for: models or sub-models not listed above. Please check your model and sub model before ordering.
Installation
The controller connects to the car's electrical system in place of, or alongside, the factory control. We recommend professional fitting by someone familiar with the car's electronics.
What does the DCU do?
It controls elec-TRON dampers, turning a passive setup into a semi-active system that adjusts damping every 5 milliseconds.
Can I choose different damping settings?
Yes. The 6-position switch selects from 3 passive and 3 adaptive damping maps.
Does it come with a wiring harness?
Yes. It is supplied with a custom or universal wiring harness and switch.
Do I need professional fitting?
We recommend professional fitting, ideally by someone familiar with the car.
Can you confirm it fits my car?
Yes. Contact us with your registration or chassis number and we will confirm fitment before you order.
What warranty is included?
Nitron products are covered against defects in materials and workmanship. Contact us if you have a problem with your kit.
