MeisterR ZetaRace Coilovers for Mazda MX5 ND (2015 on) – SRV Track Suspension for High-Grip Tyres

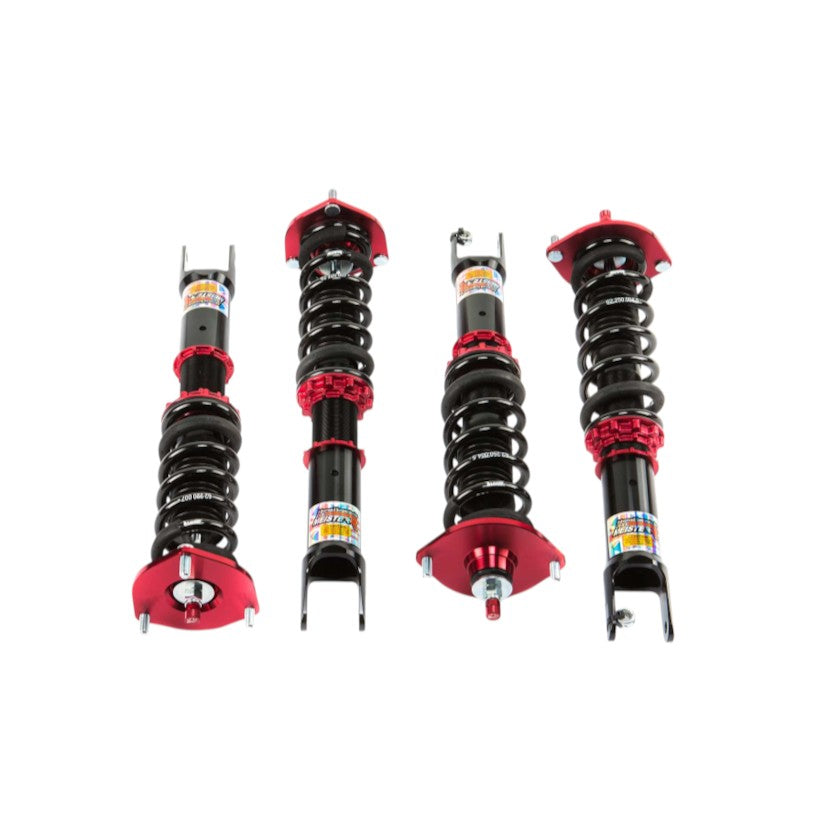

MeisterR ZetaRace coilovers replace the standard dampers and springs on the Mazda MX5 ND (2015 on) with a height adjustable setup designed for high performance track driving on high-grip tyres. Ride height and spring preload adjust independently, so you can set the height without changing how the spring is loaded.

The ZetaRace uses the MeisterR Speed Reactive Valve (SRV), developed in-house by MeisterR. It combines the fast response of a double digressive valve with the predictable feel of a linear valve, improving steering response, roll control and stability while keeping traction over kerbs.

Specifications

• Damping: 32-stage, compression and rebound combined
• Valve technology: Speed Reactive Valve (SRV)
• Spring rates: 12kg/mm front, 6kg/mm + Helper Springs rear
• Front top mount: Aluminium with spherical bearing
• Rear top mount: Aluminium with rubber bush
• Warranty: 1 year limited warranty

Key Features

• Speed Reactive Valve (SRV) technology
• 32-stage damping adjustment (compression and rebound combined)
• Valving set up for track use on high-grip tyres
• Keeps traction over kerbs and rumble strips
• Independent ride height and spring preload adjustment
• Bump stops and rubber boots included

What's in the Kit?

• 2 x front coilovers with springs and top mounts (aluminium with spherical bearing)
• 2 x rear coilovers or dampers with springs and top mounts (aluminium with rubber bush)
• Bump stops and rubber dust boots

Fitment

• Mazda MX5 ND (2015 on)

Not suitable for: other models or chassis codes not listed above. Please check your chassis code and years before ordering.

Installation

The kit bolts in place of the standard suspension. Set the ride height and spring preload, tighten everything to the correct torque, let the suspension settle, then recheck the height and have a four-wheel alignment carried out. We recommend professional fitting.

Upgrade Further

Other MeisterR options for this car: MeisterR GT1 Coilovers Mazda MX5 ND 15+; MeisterR ZetaSport Coilovers Mazda MX5 ND 15+; MeisterR ClubRace GT1 Coilovers Mazda MX5 ND 15+.

Can I adjust the ride height?

Yes. Ride height and spring preload adjust independently, so you can set the height without changing spring preload.

How is the damping adjusted?

A single adjuster on each damper gives 32 stages, with compression and rebound adjusted together. Start in the middle and adjust in small steps.

Are these suitable for daily driving?

Yes. They can be used on the road, but they are set up mainly for track-focused cars, so expect a firmer ride than our road-focused kits.

Do I need a wheel alignment after fitting?

Yes. Changing the ride height alters the suspension geometry, so a four-wheel alignment should be carried out once the car has settled.

Which MeisterR kit is right for my car?

Choose a road-focused kit such as the ZetaCRD or ZetaSport for mostly road use, and the ClubRace, ZetaRace or GT1 range for track-focused cars. Contact us if you would like help choosing.

What warranty is included?

MeisterR covers this kit with a 1 year limited warranty against defects in materials and workmanship.

Will it fit my car?

This kit is for the Mazda MX5 ND (2015 on). If you are not sure, contact us with your registration or chassis number and we will confirm before you order.
