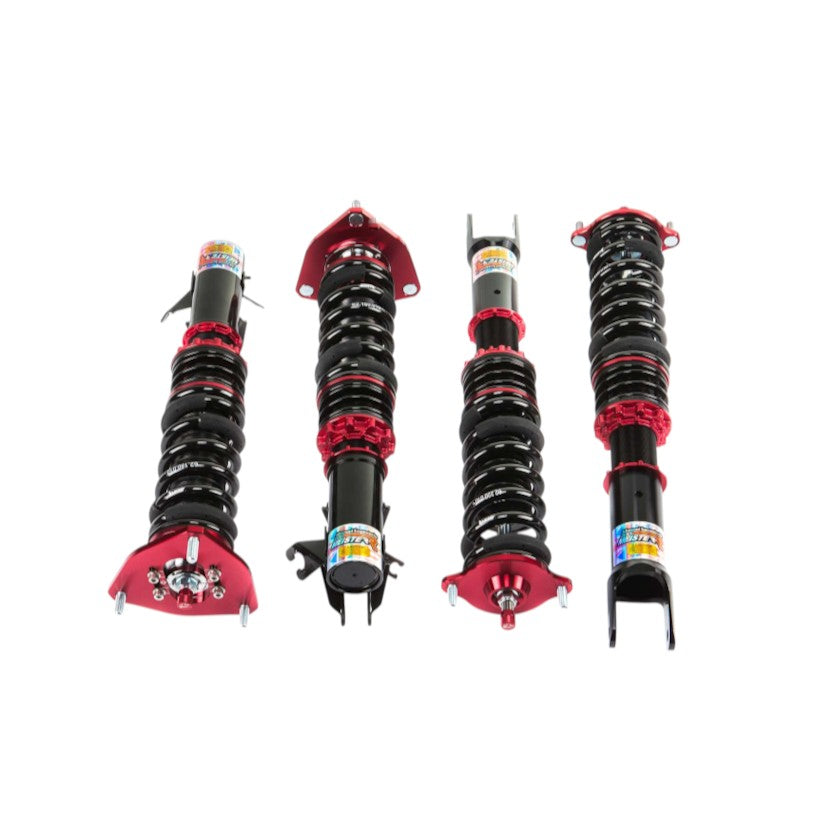

MeisterR ClubRace Coilovers Mitsubishi EVO 4-6 CP9A 96-01

MeisterR ClubRace Coilovers for Mitsubishi EVO 4-6 CP9A (1996-2001) – Track-Focused CRD Damping with a Compliant Ride

MeisterR ClubRace coilovers replace the standard dampers and springs on the Mitsubishi EVO 4-6 CP9A (1996-2001) with a height adjustable setup designed for track-focused cars that still need a compliant ride. Ride height and spring preload adjust independently, so you can set the height without changing how the spring is loaded.

The ClubRace uses digressive damping with MeisterR's Close Ratio Damping (CRD) technology, set up for track-focused cars, with helper springs to maximise wheel travel and traction. It keeps good control on circuit while still riding uneven roads well.

Specifications

• Damping: 32-stage, compression and rebound combined
• Valve technology: Close Ratio Damping (CRD), digressive
• Spring rates: 10kg/mm front, 10kg/mm rear
• Front top mount: Aluminium with spherical bearing and camber adjustment
• Rear top mount: Aluminium with spherical bearing
• Warranty: 1 year limited warranty

Key Features

• Digressive damping with Close Ratio Damping (CRD) technology
• 32-stage damping adjustment (compression and rebound combined)
• Independent ride height and spring preload adjustment
• Helper springs for maximum wheel travel and traction
• Set up for track-focused cars
• Bump stops and rubber boots included

What's in the Kit?

• 2 x front coilovers with springs and top mounts (aluminium with spherical bearing and camber adjustment)
• 2 x rear coilovers or dampers with springs and top mounts (aluminium with spherical bearing)
• Bump stops and rubber dust boots

Fitment

• Mitsubishi EVO 4-6 CP9A (1996-2001)

Not suitable for: other models or chassis codes not listed above. Please check your chassis code and years before ordering.

Installation

The kit bolts in place of the standard suspension. Set the ride height and spring preload, tighten everything to the correct torque, let the suspension settle, then recheck the height and have a four-wheel alignment carried out. We recommend professional fitting.

Upgrade Further

Other MeisterR options for this car: MeisterR GT1 Coilovers Mitsubishi EVO 4-6 CP9A 96-01; MeisterR ZetaSport Coilovers Mitsubishi EVO 4-6 CP9A 96-01; MeisterR ClubRace GT1 Coilovers Mitsubishi EVO 4-6 CP9A 96-01.

Can I adjust the ride height?

Yes. Ride height and spring preload adjust independently, so you can set the height without changing spring preload.

How is the damping adjusted?

A single adjuster on each damper gives 32 stages, with compression and rebound adjusted together. Start in the middle and adjust in small steps.

Are these suitable for daily driving?

Yes. They can be used on the road, but they are set up mainly for track-focused cars, so expect a firmer ride than our road-focused kits.

Do I need a wheel alignment after fitting?

Yes. Changing the ride height alters the suspension geometry, so a four-wheel alignment should be carried out once the car has settled.

Which MeisterR kit is right for my car?

Choose a road-focused kit such as the ZetaCRD or ZetaSport for mostly road use, and the ClubRace, ZetaRace or GT1 range for track-focused cars. Contact us if you would like help choosing.

What warranty is included?

MeisterR covers this kit with a 1 year limited warranty against defects in materials and workmanship.

Will it fit my car?

This kit is for the Mitsubishi EVO 4-6 CP9A (1996-2001). If you are not sure, contact us with your registration or chassis number and we will confirm before you order.
