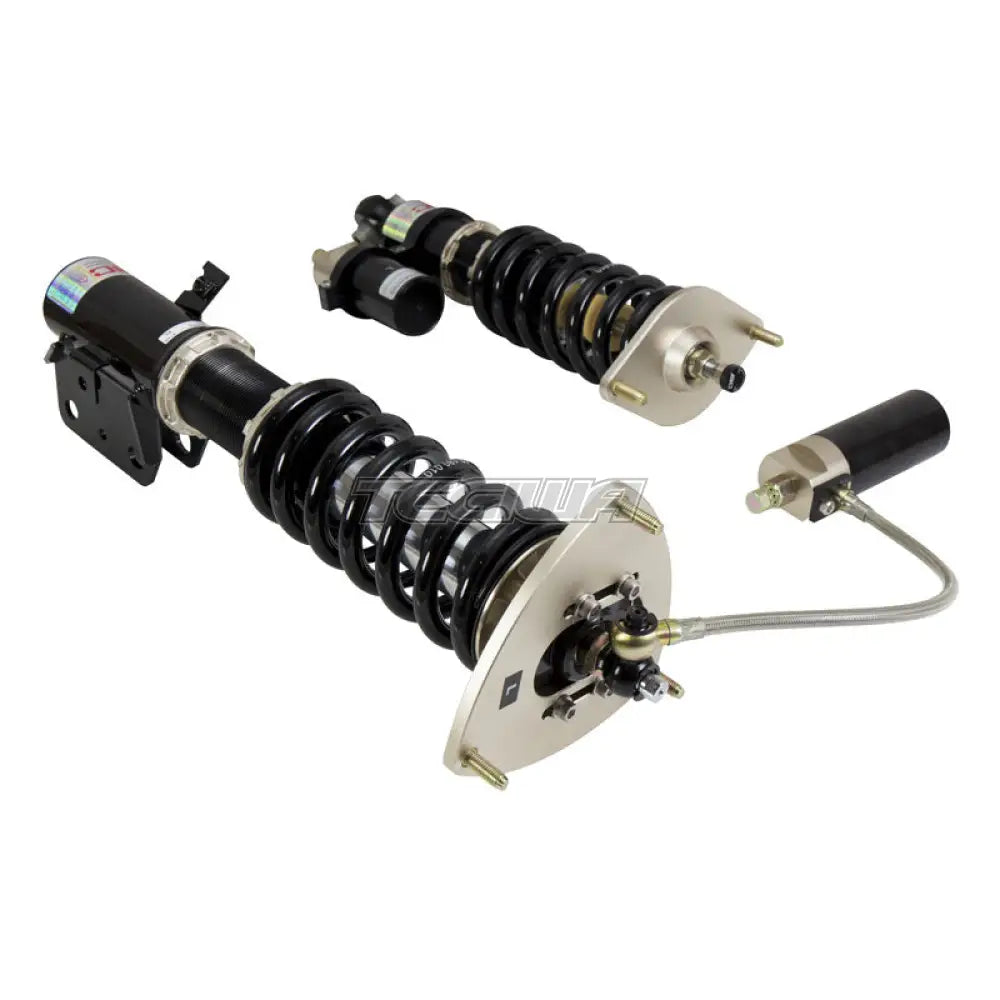

BC Racing HM-Series Coilovers Nissan Silvia S13 89-94 - 240SX

BC Racing HM-Series Coilovers for Nissan Silvia S13 (1989-1994) – Height and Damping Adjustable, Corner Weight Adjustable

These BC Racing HM-Series coilovers replace the standard dampers and springs on the Nissan Silvia S13 (1989-1994) with a fully adjustable setup. You can set the ride height, damping and corner weights to suit the car, making them ideal for demanding track use. This kit is the 240SX version.

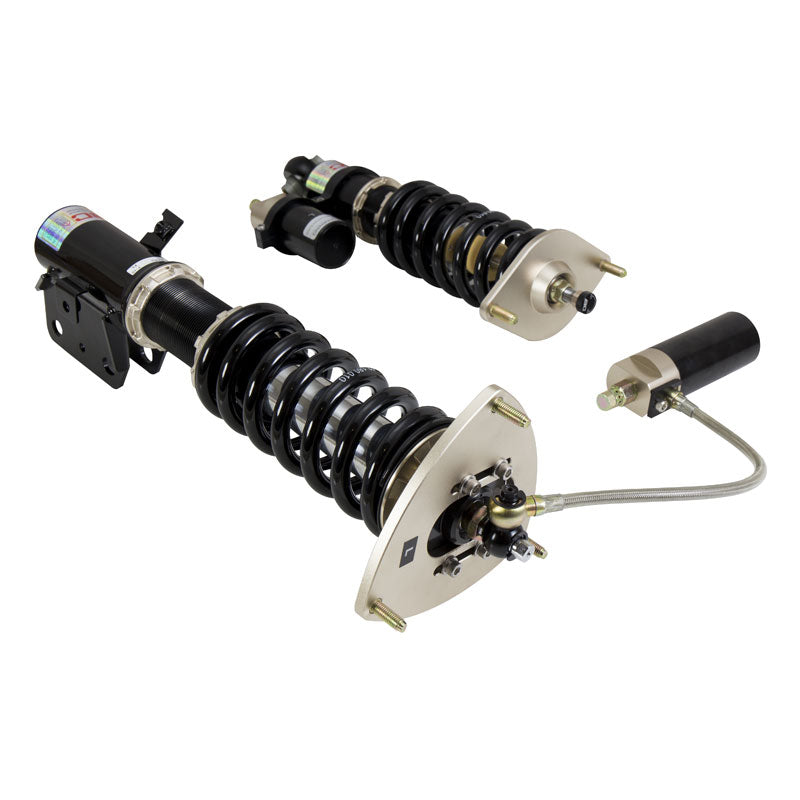

The HM-Series combines inverted monotube dampers with external reservoirs and 30 levels of separate compression and rebound adjustment. The inverted design moves damper fluid away from heat sources and shifts mass up to the chassis, reducing unsprung weight and helping wheel control and steering feel.

Ride height is set by winding the bottom mount up or down the damper body rather than moving the spring, so full damper travel is kept whatever height you run. The lower spring platform also adjusts, so the car can be corner weighted for even tyre loading across each axle.

Specifications

• Damping: 30 levels of separate compression and rebound adjustment

Key Features

• Inverted monotube dampers with external reservoirs
• 30 levels of separate compression and rebound adjustment
• Dual piston design (one in the reservoir, one in the damper)
• Fully rebuildable dampers
• Ride height set at the bottom mount, so full damper travel is kept at any height
• Adjustable lower spring platform for corner weighting
• Patented concave lower locking collar

What's in the Kit?

• 2 x front coilovers with springs
• 2 x rear dampers and springs

Fitment

• Nissan Silvia S13 89-94 240SX

Not suitable for: other Nissan Silvia S13 variants with a different drive layout, strut diameter or rear suspension type. Please check your chassis code and drive type against the fitment above before ordering.

Installation

The coilovers replace the standard dampers and springs and bolt in to the original mounting points. Set the ride height and spring preload before final tightening, let the suspension settle, then recheck the height and have a four-wheel alignment carried out. We recommend professional fitting.

Upgrade Further

Other BC Racing options for this car: BC Racing BR-Series Coilovers Nissan Silvia S13 89-94 RWD 6/4kg; BC Racing DS-Series Coilovers Nissan Silvia S13 89-94 RWD 6/4kg; BC Racing ER-Series Coilovers Nissan Silvia S13 89-94. Keep a spare BC Racing C-spanner for adjusting the height and spring platforms.

Can I adjust the ride height?

Yes. Ride height is set by moving the bottom mount on the damper body, so you keep full damper travel at any height you choose.

How is the damping adjusted?

The HM-Series uses 30 levels of separate compression and rebound adjustment. Start from BC's base setting and adjust front and rear in small steps to suit the road or track.

Are these suitable for daily driving?

They can be used on the road, but the HM-Series is designed mainly for demanding track use. For a car that is mostly driven on the road, our V1 or BR-Series kits are a better fit.

Can I get different spring rates?

The kit comes with BC's standard spring rates for this car. If you need different rates, contact us before ordering and we will check what is available.

Do I need a wheel alignment after fitting?

Yes. Changing the ride height alters the suspension geometry, so a four-wheel alignment should be carried out once the car has settled.

What warranty is included?

BC Racing products are covered against defects in materials and workmanship. Contact us if you have any problem with your kit.
