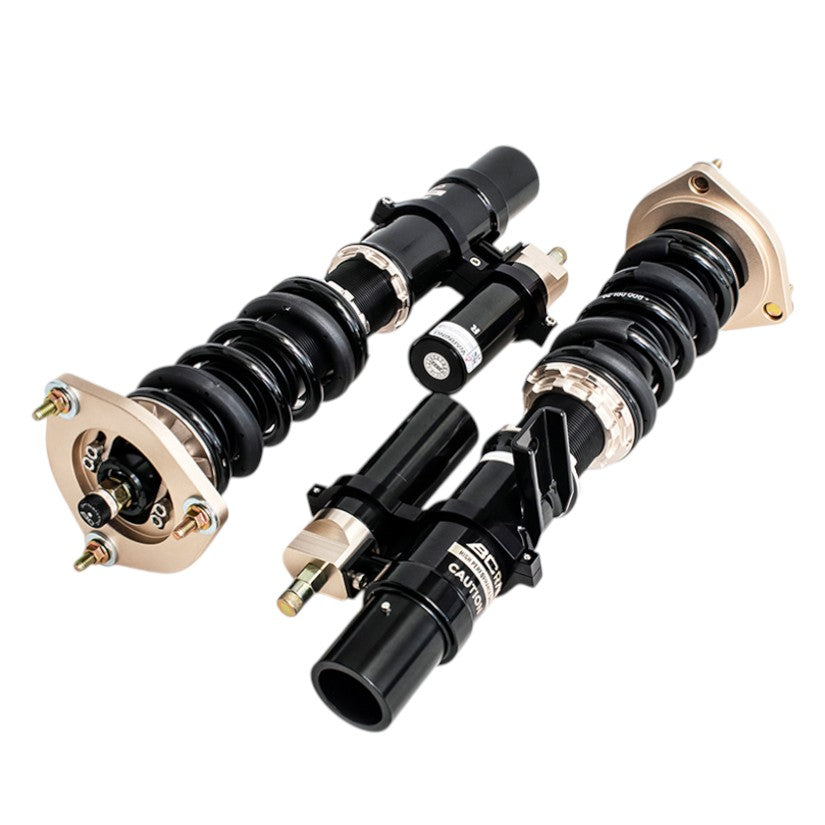

BC Racing ER-Series Coilovers BMW M140i F20 14-16 3 Bolt Top Mount

BC Racing ER-Series Coilovers for BMW M140i F20 (2014-2016) – Height and Damping Adjustable, Corner Weight Adjustable

These BC Racing ER-Series coilovers replace the standard dampers and springs on the BMW M140i F20 (2014-2016) with a fully adjustable setup. You can set the ride height, damping and corner weights to suit the car, making them ideal for track days and hard fast road driving. This kit is the 3 Bolt Top Mount version.

The ER-Series adds external reservoirs front and rear, increasing the oil and gas capacity of each damper. That keeps temperatures and damping consistent through long track sessions, and separate compression and rebound adjusters let you fine-tune how the car loads and unloads its tyres on corner entry.

Ride height is set by winding the bottom mount up or down the damper body rather than moving the spring, so full damper travel is kept whatever height you run. The lower spring platform also adjusts, so the car can be corner weighted for even tyre loading across each axle.

Specifications

• Spring rates: 5.5/9kg/mm (F/R)
• Damping: 2 way damping adjustable
• Front: External reservoir - includes pillowball top mount
• Rear: External reservoir - includes pillowball top mount
• Camber adjustment: Front camber adjustment, front camber/castor plate
• Kit weight: 24kg

Key Features

• External reservoirs for extra oil and gas capacity
• Separately adjustable compression and rebound damping
• Ride height set at the bottom mount, so full damper travel is kept at any height
• Adjustable lower spring platform for corner weighting
• Black chromed damper bodies with anodised aluminium parts for corrosion resistance
• Pillowball or camber adjustable top mounts on many applications

What's in the Kit?

• 2 x front coilovers with springs (external reservoir - includes pillowball top mount)
• 2 x rear dampers and springs (external reservoir - includes pillowball top mount)

Fitment

• BMW M140i F20 14-16 (3 Bolt Top Mount)
• BMW M235i F22 14-16 (RWD 3 Bolt TM)

Not suitable for: other BMW M140i F20 variants with a different drive layout, strut diameter or rear suspension type. Other versions for this car: BC Racing ER-Series Coilovers BMW M140i F20 14-16 5 Bolt Top Mount.

Installation

The coilovers replace the standard dampers and springs and bolt in to the original mounting points. Set the ride height and spring preload before final tightening, let the suspension settle, then recheck the height and have a four-wheel alignment carried out. We recommend professional fitting.

Upgrade Further

Other BC Racing options for this car: BC Racing BR-Series Coilovers BMW M140i F20 14-16 5 Bolt Top Mount 5/9kg; BC Racing DS-Series Coilovers BMW M140i F20 14-16 5 Bolt Top Mount 5/9kg; BC Racing RM-Series Coilovers BMW M140i F20 14-16 5 Bolt Top Mount. Keep a spare BC Racing C-spanner for adjusting the height and spring platforms.

Can I adjust the ride height?

Yes. Ride height is set by moving the bottom mount on the damper body, so you keep full damper travel at any height you choose.

How is the damping adjusted?

The ER-Series uses separate compression and rebound adjusters. Start from BC's base setting and adjust front and rear in small steps to suit the road or track.

Are these suitable for daily driving?

They can be used on the road, but the ER-Series is designed mainly for track days and hard fast road driving. For a car that is mostly driven on the road, our V1 or BR-Series kits are a better fit.

Can I get different spring rates?

The kit comes with 5.5/9kg/mm (F/R) springs as standard. If you need different rates, contact us before ordering and we will check what is available.

Will pillowball top mounts be noisier?

Pillowball mounts are solid, so they transfer a little more noise and vibration than rubber mounts. In return they remove flex and sharpen steering response.

Do I need a wheel alignment after fitting?

Yes. Changing the ride height alters the suspension geometry, so a four-wheel alignment should be carried out once the car has settled.

Which version do I need?

Check your car's drive layout, strut diameter and rear suspension type against the fitment notes. If you are not sure, contact us with your registration or VIN and we will confirm.

Does it fit other models?

Yes, BC lists this kit as also fitting: BMW M235i F22 14-16 (RWD 3 Bolt TM).

What warranty is included?

BC Racing products are covered against defects in materials and workmanship. Contact us if you have any problem with your kit.
