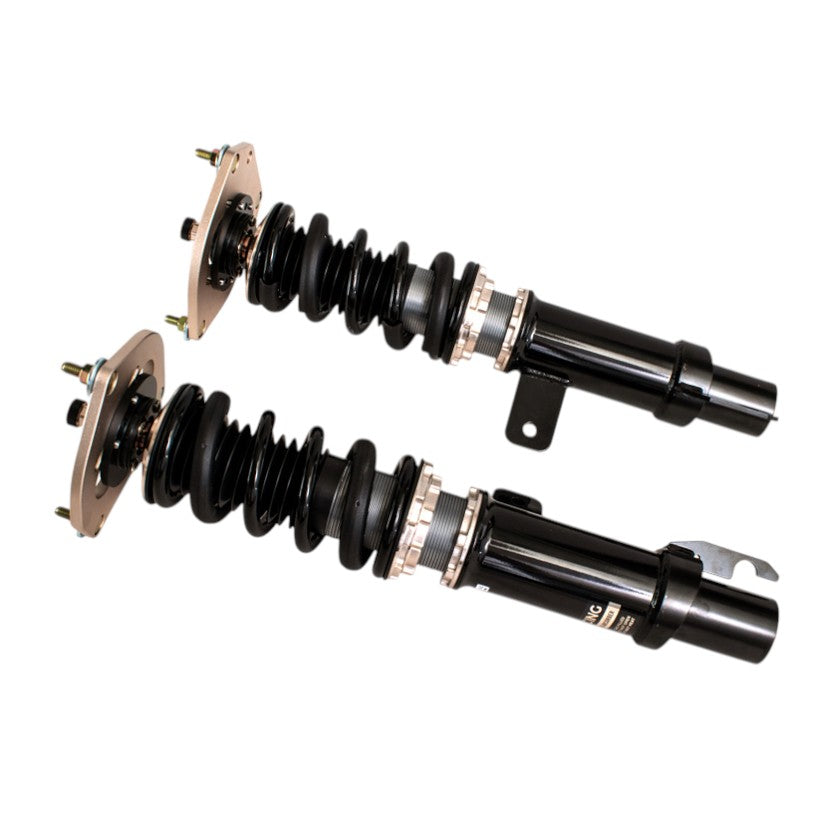

BC Racing DS-Series Coilovers Honda Odyssey RB1 03-08

BC Racing DS-Series Coilovers for Honda Odyssey RB1 (2003-2008) – Height and Damping Adjustable, Corner Weight Adjustable

These BC Racing DS-Series coilovers replace the standard dampers and springs on the Honda Odyssey RB1 (2003-2008) with a fully adjustable setup. You can set the ride height, damping and corner weights to suit the car, making them ideal for fast road and track use where you want more control over the setup.

The DS-Series builds on the BC coilover platform with separately adjustable compression and rebound damping. Having the two adjustments apart lets you tune how the car settles under braking and how quickly it recovers, giving finer control over the setup than a single adjuster.

Ride height is set by winding the bottom mount up or down the damper body rather than moving the spring, so full damper travel is kept whatever height you run. The lower spring platform also adjusts, so the car can be corner weighted for even tyre loading across each axle.

Specifications

• Damping: Separate compression and rebound adjusters
• Spring rates: 12/12kg/mm (F/R)
• Front: Aluminium front top mounts with rubber centres
• Rear: Aluminium rear top mounts with rubber centres, or no rear top mounts
• Kit weight: 24kg

Key Features

• Separately adjustable compression and rebound damping
• Ride height set at the bottom mount, so full damper travel is kept at any height
• Adjustable lower spring platform for corner weighting
• Monotube damper design
• Black chromed damper bodies with anodised aluminium parts for corrosion resistance
• Pillowball or camber adjustable top mounts on many applications

What's in the Kit?

• 2 x front coilovers with springs (aluminium front top mounts with rubber centres)
• 2 x rear dampers and springs (aluminium rear top mounts with rubber centres, or no rear top mounts)

Fitment

• Honda Odyssey RB1 03-08 (FWD)

Not suitable for: other Honda Odyssey RB1 variants with a different drive layout, strut diameter or rear suspension type. Please check your chassis code and drive type against the fitment above before ordering.

Installation

The coilovers replace the standard dampers and springs and bolt in to the original mounting points. Set the ride height and spring preload before final tightening, let the suspension settle, then recheck the height and have a four-wheel alignment carried out. We recommend professional fitting.

Upgrade Further

Other BC Racing options for this car: BC Racing BR-Series Coilovers Honda Odyssey RB1 03-08. Keep a spare BC Racing C-spanner for adjusting the height and spring platforms.

Can I adjust the ride height?

Yes. Ride height is set by moving the bottom mount on the damper body, so you keep full damper travel at any height you choose.

How is the damping adjusted?

The DS-Series uses separate compression and rebound adjusters. Start from BC's base setting and adjust front and rear in small steps to suit the road or track.

Are these suitable for daily driving?

Yes. Set to a sensible height and softer damping, they work well on the road while giving sharper handling than standard.

Can I get different spring rates?

The kit comes with 12/12kg/mm (F/R) springs as standard. If you need different rates, contact us before ordering and we will check what is available.

Do I need a wheel alignment after fitting?

Yes. Changing the ride height alters the suspension geometry, so a four-wheel alignment should be carried out once the car has settled.

What warranty is included?

BC Racing products are covered against defects in materials and workmanship. Contact us if you have any problem with your kit.
